Product Details

Description



Features:

· Simulates behaviour of a ratio detector (internal field strength and detuning-dependent voltage for dynamic AF ignal muting)
· Mono/stereo blend and field strength indication control voltage
· Three-state mode switch for FM, mute-on / FM, mute-off / FM-off
· Internal compensation of AF signal total harmonic distortion (THD)
· Two open collector stop pulse outputs for microcomputer tuning control (can be one stop pulse output by wired-ANDing)
· Internal reference voltage source
· Built-in hum and ripple rejection circuits.

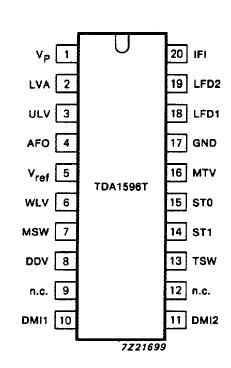

Pinout

Connection Diagram


Specifications

Limiting values in accordance with the Absolute Maximum System (IEC 134)
SYMBOL PARAMETER MIN. MAX. UNIT
VP = V1-17 Supply voltage (pin 1) -0.3 +16 V
V5-17 Reference voltage range (pin 5) -0.3 + 10 V
V2-17 Level adjustment range (pin 2) -0.3 + 10 V
V7-17 Mode switch voltage range (pin 7) -0.3 VP V
V13-17 Control input voltage range (pin 13) - +6 V
  THD compensation/unweighted field
V3-17 strength voltage range (pin 3) -0.3 VP V
  Tuning-stop output voltage rang
V15-17 STOP-0 (pin 15) -0.3 VP V
V14-17 STOP-1 (pin 14) -0.3 VP V
  Tuning-stop output current
I15 STOP-0 (pin 15) - 2 mA
I14 STOP-1 (pin 14) - 2 mA
Tstg Storage temperature range -55 + 150 °C
Tamb Operating ambient temperature range -40 + 85 °C
  Electrostatic handling(1)
Ves all pins except pins 5 and 6 -2000 + 2000 V
Ves pin 5 -2000 + 900 V
Ves pin 6 -2000 + 1600 V

Note
1. Equivalent to discharging a 100 pF capacitor through a 1.5 kW series resistor.




Description

The TDA1596T provides IF amplification, symmetrical quadrature demodulation and level detection for quality home and car FM radio receivers and is suitable for both mono and stereo reception. It may also be applied to common front-ends, stereo decoders and AM receiver circuits.
