TDA1591

Features: · Adjustment-free voltage controlled PLL oscillator for ceramic resonator (f = 456 kHz)· Pilot signal dependent mono/stereo switching· Analog control of mono/stereo change over [stereo blend, Stereo Noise Controller (SNC)]· Adjacent channel noise suppression (114 kHz)· Pilot canceller· A...

product image

TDA1591 Picture
See larger image
SeekIC No. : 004516161 Detail

TDA1591: Features: · Adjustment-free voltage controlled PLL oscillator for ceramic resonator (f = 456 kHz)· Pilot signal dependent mono/stereo switching· Analog control of mono/stereo change over [stereo ble...

TDA1591 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA1591
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Adjustment-free voltage controlled PLL oscillator for ceramic resonator (f = 456 kHz)
· Pilot signal dependent mono/stereo switching
· Analog control of mono/stereo change over
  [stereo blend, Stereo Noise Controller (SNC)]
· Adjacent channel noise suppression (114 kHz)
· Pilot canceller
· Analog control of de-emphasis; High Cut Control (HCC)
· Applicable as source selector for AM/FM/cassette switching
· Separate interference noise detector
· Integrated input low-pass filter for delayed noise blanking
· Noise blanking at MPX-demodulator outputs
· Internal voltage stabilization.

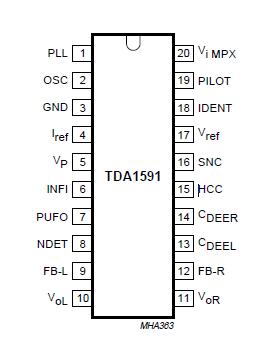

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VP supply voltage (pin 5) 0 13.2 V
Ptot total power dissipation 0 0.25 W
Tstg storage temperature -55 +150 °C
Tamb operating ambient temperature -40 +85 °C
Ves electrostatic handling; note 1
pins 1 and 16
pin 5
all other pins
 -400
-300
-600		 +400
+300
+600		 V
V
V
Note
1. Equivalent to discharging a 200 pF capacitor through a 0  series resistor.


Description

The TDA1591 is a monolithic bipolar integrated circuit providing the stereo decoder function and noise blanking for FM car radio applications.

The device operates in a power supply range of 7.5 to 12 V.
