Product Details

Description



Features:

· Selective subcarrier amplifier (57 kHz) with gain control
· Transmitter identification signal (SK) decoder
· Area identification signal (BK) and announcement identification signal (DK) active filtering
· BK and DK decoders (Schmitt trigger with switched hysteresis)
· BK and DK switch-on/switch-off delay circuits
· SK and BK control outputs.


Pinout

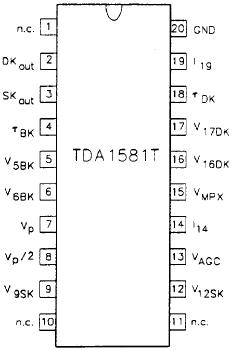

Connection Diagram


Specifications

In accordance with the Absolute Maximum System (IEC134).
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
VP = V7-20 supply voltage pin 7 - - 15 V
V2; 3-20 switch output voltage pins 2 or 3 -0.5   15 V
I2; 3 switch output current pins 2 or 3 -10   5 mA
V15-20 signal input voltage pin 15 -0.5   VP V
I15 signal input current pin 15 -   -10 mA
Ptot total power dissipation   -   800 mW
Tstg storage temperature range   -55   +150 °C
Tamb operating ambient temperature range   -30   +80 °C



Description

The TDA1581T decoder is for radio transmissions having 57 kHz amplitude-modulated subcarriers as used in the german 'Verkehrs Warnfunk' (VWF) traffic warning system.
