Product Details

Description



Features:

· Low dissipation due to switching from Single-Ended (SE) to Bridge-Tied Load (BTL) mode
· Differential inputs with high Common Mode Rejection Ratio (CMRR)
· Mute/standby/operating (mode select pin)
· Load dump protection circuit
· Short-circuit safe to ground, to supply voltage and across load
· Loudspeaker protection circuit
· Offset detection for each channel
· Device switches to single-ended operation at excessive junction temperatures
· Thermal protection at high junction temperature (170°C)
· Clip detection at THD = 2.5 %
· Diagnostic information (clip/protection/prewarning/offset).


Pinout

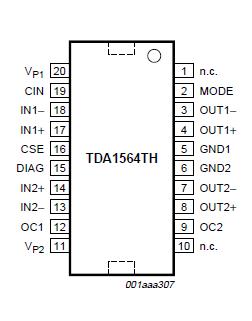

Connection Diagram


Specifications

In accordance with the Absolute Maximum Rating System (IEC 60134).
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VP supply voltage operating - 18 V
non-operating - 30 V
load dump; tr > 2.5 ms - 45 V
VP(sc) short-circuit safe voltage   - 18 V
Vrp reverse polarity voltage   - 6 V
IORM repetitive peak output current   - 4 A
Ptot total power dissipation   - 60 W
Tstg storage temperature   -55 +150 °C
Tvj virtual junction temperature   - 150 °C
Tamb ambient temperature   -40 +85 °C






Description

The TDA1564 is a monolithic power amplifier in a 17-lead single-in-line (SIL) plastic power package. It contains two identical 25 W amplifiers. The dissipation is minimized by switching from SE to BTL mode, only when a higher output voltage swing is needed. The device is primarily developed for car radio applications.
