TDA1563Q

Features: · Low dissipation due to switching from Single-Ended (SE) to Bridge-Tied Load (BTL) mode· Differential inputs with high Common Mode Rejection Ratio (CMRR)· Mute/standby/operating (mode select pin)· Zero crossing mute circuit· Load dump protection circuit· Short-circuit safe to ground, to...

product image

TDA1563Q Picture
See larger image
SeekIC No. : 004516145 Detail

TDA1563Q: Features: · Low dissipation due to switching from Single-Ended (SE) to Bridge-Tied Load (BTL) mode· Differential inputs with high Common Mode Rejection Ratio (CMRR)· Mute/standby/operating (mode sel...

TDA1563Q Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA1563Q
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Low dissipation due to switching from Single-Ended (SE) to Bridge-Tied Load (BTL) mode
· Differential inputs with high Common Mode Rejection Ratio (CMRR)
· Mute/standby/operating (mode select pin)
· Zero crossing mute circuit
· Load dump protection circuit
· Short-circuit safe to ground, to supply voltage and across load
· Loudspeaker protection circuit
· Device switches to SE operation at excessive junction temperatures
· Thermal protection at high junction temperature (170°C)
· Diagnostic information (clip detection and protection/temperature)
· Clipping information can be selected between THD = 2.5% or 10%


Pinout

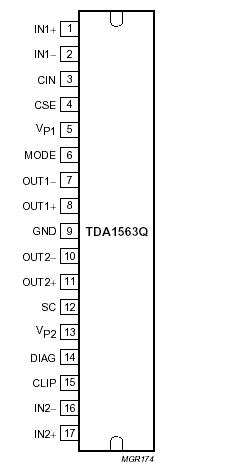

Connection Diagram


Specifications

Symbol
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
VP
supply voltage operating
non-operating
load dump; tr > 2.5 ms
-
18
v
-
30
v
-
45
v
VP(sc) short-circuit safe voltage
-
18
v
Vrp reverse polarity voltage
-
6
v
IOSM repetitive peak output current
-
4
A
ptot total power dissipation
-
60
w
TSTG storage temperature

-
+150
°C
TVJ virtual junction temperature
-
150
°C
Tamb ambient temperature
-55
-
°C



Description

The TDA1563Q is a monolithic power amplifier in a 17-lead DIL-bent-SIL plastic power package. It contains two identical 25 Wamplifiers. The dissipation is minimized by switching from SE to BTL mode when a higher output voltage swing is needed. The device is primarily developed for car radio applications.
