TDA1561Q

Features: · Low dissipation due to switching from Single-Ended (SE) to Bridge-Tied Load (BTL) mode· High Common Mode Rejection Ratio (CMRR)· Mute/standby/operating/SE-only (mode select pin)· Zero crossing mute and standby circuit· Load dump protection circuit· Short-circuit safe to ground, to supp...

product image

TDA1561Q Picture
See larger image
SeekIC No. : 004516141 Detail

TDA1561Q: Features: · Low dissipation due to switching from Single-Ended (SE) to Bridge-Tied Load (BTL) mode· High Common Mode Rejection Ratio (CMRR)· Mute/standby/operating/SE-only (mode select pin)· Zero cr...

TDA1561Q Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA1561Q
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Low dissipation due to switching from Single-Ended (SE) to Bridge-Tied Load (BTL) mode
· High Common Mode Rejection Ratio (CMRR)
· Mute/standby/operating/SE-only (mode select pin)
· Zero crossing mute and standby circuit
· Load dump protection circuit
· Short-circuit safe to ground, to supply voltage and across load
· Loudspeaker protection circuit
· Device switches to single-ended operation at excessive unction temperatures.

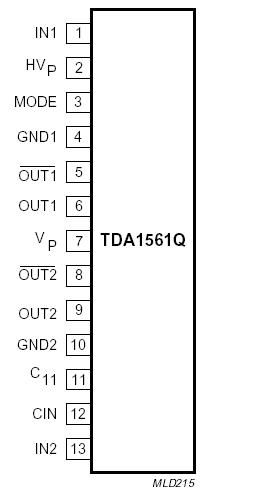

Pinout

Connection Diagram


Specifications

Symbol
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
VP
supply voltage operating
non operating
load dump; tr > 2.5 ms
-
18
v
-
30
v
-
50
v
VP(sc) short-circuit safe voltage
-
18
v
Vrp reverse polarity voltage
-
6
v
IOSM non-repetitive peak output current
6
A
IOrM repetitive peak output current
-
4
A
Ptot total power dissipation
-
60
w
Tstg storage temperature
-55
+150
°C
Tvj virtual junction temperature
-
150
°C
Tamb operating ambient temperature
-40
-
°C



Description

The TDA1561Q is a monolithic power amplifier in a 13 lead single-in-line (SIL) plastic power package. It contains two identical 23 W amplifiers. The dissipation is minimized by switching from SE to BTL mode, only when a higher output voltage swing is needed. The device is primarily developed for car radio applications.
