TDA1560Q

Features: · Very high output power· Low power dissipation when used for music signals· Switches to low output power in the event of excessive heatsink temperatures· Requires few external components· Fixed gain· Low cross-over distortion· No switch-on/switch-off plops· Mode select switch· Low offse...

product image

TDA1560Q Picture
See larger image
SeekIC No. : 004516140 Detail

TDA1560Q: Features: · Very high output power· Low power dissipation when used for music signals· Switches to low output power in the event of excessive heatsink temperatures· Requires few external components·...

TDA1560Q Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA1560Q
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Very high output power
· Low power dissipation when used for music signals
· Switches to low output power in the event of excessive heatsink temperatures
· Requires few external components
· Fixed gain
· Low cross-over distortion
· No switch-on/switch-off plops
· Mode select switch
· Low offset voltage at the output
· Load dump protection
· Short-circuit safe to ground, VP and across load
· Protected against electrostatic discharge
· Thermally protected
· Diagnostic facility
· Flexible leads.

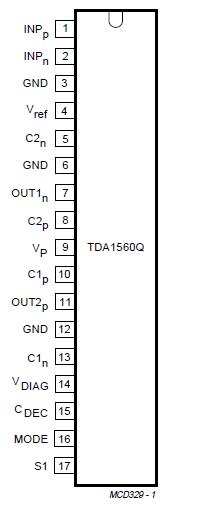

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VP supply voltage operating - 18 V
non-operating - 30 V
load dump protection; tr 2.5 ms - 45 V
IOSM non-repetitive peak output current   - 6 A
IORM repetitive peak output current   - 4 A
VP(sc) AC and DC short-circuit safe voltage   - 18 V
Ecap energy handling capability at outputs VP = 0 - 200 mJ
I17 current at pin 17 V17 < VP - 1 - 5 mA
Ptot total power dissipation   - 60 W
Tstg storage temperature   -50 +150
Tamb operating ambient temperature   -45 -





Description

The TDA1560Q is an integrated Bridge-Tied Load (BTL) class-H high power amplifier. In a load of 8 W, the output power is 40 W typical at a THD of 10%.

The encapsulation is a 17-lead DIL-bent-SIL plastic power package. The device is primarily developed for car radio applications.
