TDA1553CQ

Features: · Few peripheral components· High output power· Low output offset voltage· Fixed gain· Loudspeaker protection· Good ripple rejection· 3-state mode switch (operating, mute, standby)· Load dump protection· AC and DC short-circuit safe to ground and to VP· Thermally protected· Reverse polar...

product image

TDA1553CQ Picture
See larger image
SeekIC No. : 004516132 Detail

TDA1553CQ: Features: · Few peripheral components· High output power· Low output offset voltage· Fixed gain· Loudspeaker protection· Good ripple rejection· 3-state mode switch (operating, mute, standby)· Load d...

TDA1553CQ Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA1553CQ
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Few peripheral components
· High output power
· Low output offset voltage
· Fixed gain
· Loudspeaker protection
· Good ripple rejection
· 3-state mode switch (operating, mute, standby)
· Load dump protection
· AC and DC short-circuit safe to ground and to VP
· Thermally protected
· Reverse polarity safe
· High energy handling capability at the outputs (VP = 0)
· Electrostatic discharge protection
· No switch-on/switch-off plop
· Flexible leads
· Low thermal resistance.

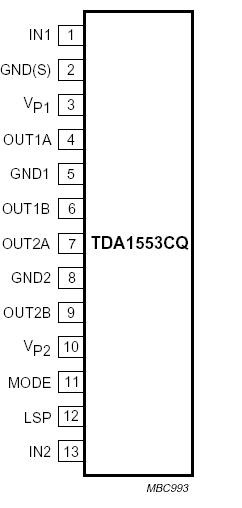

Pinout

Connection Diagram


Specifications

Symbol
PARAMETER
 CONDITIONS
MIN.
MAX.
UNIT
VP positive supply voltage
operating
non-operating
load dump protection		 during 50 ms;
tr 2.5 ms
-
18
v
-
30
v
-
45
v
IOSM non-repetitive peak output current
-
6
A
IORM repetitive peak output current
-
4
A
Tstg storage temperature range
-55
+150
°C
Tamb operating ambient temperature range
-40
+85
°C
TVJ virtual junction temperature
-
150
°C
VPsc AC/DC short-circuit safe voltage
-
18
V
  energy handling capability at outputs VP = 0
-
200
MJ
VPr reverse polarity
-
6
V
Ptot total power dissipation
-
60
W



Description

The TDA1553CQ is a monolithic integrated class-B output amplifier in a 13-lead plastic DIL-bent-SIL power package. It contains 2 ´ 22 W amplifiers in BTL configuration. The device is primarily developed for car radio applications.
