TDA1519C

Features: · Requires very few external components for Bridge-Tied Load (BTL)· Stereo or BTL application· High output power· Low offset voltage at output (important for BTL)· Fixed gain· Good ripple rejection· Mute/standby switch· Load dump protection· AC and DC short-circuit-safe to ground and VP·...

product image

TDA1519C Picture
See larger image
SeekIC No. : 004516108 Detail

TDA1519C: Features: · Requires very few external components for Bridge-Tied Load (BTL)· Stereo or BTL application· High output power· Low offset voltage at output (important for BTL)· Fixed gain· Good ripple ...

TDA1519C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA1519C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Requires very few external components for Bridge-Tied Load (BTL)
· Stereo or BTL application
· High output power
· Low offset voltage at output (important for BTL)
· Fixed gain
· Good ripple rejection
· Mute/standby switch
· Load dump protection
· AC and DC short-circuit-safe to ground and VP
· Thermally protected
· Reverse polarity safe
· Capability to handle high energy on outputs (VP = 0 V)
· No switch-on/switch-off plop
· Protected against electrostatic discharge
· Low thermal resistance
· Identical inputs (inverting and non-inverting)
· Pin compatible with TDA1519B (TDA1519C and TDA1519CSP).


Application

These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such improper use or sale.

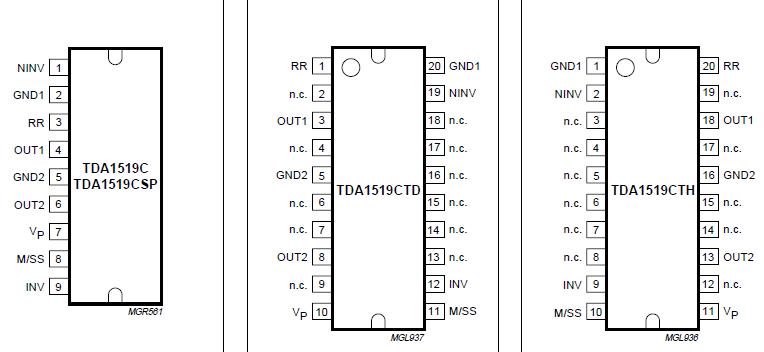

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VP supply voltage operating - 17.5 V
non-operating - 30 V
load dump protected;
during 50 ms; tr 2.5 ms		 - 45 V
VSC AC and DC short-circuit-safe voltage   - 17.5 V
Vrp reverse polarity voltage   - 6 V
  energy handling capability at outputs VP = 0 V - 200 mJ
IOSM non-repetitive peak output current   - 6 A
IORM repetitive peak output current   - 4 A
Ptot total power dissipation see Fig.5 - 25 W
Tj junction temperature   - 150 °C
Tstg storage temperature -55 -55 +150 °C



Description

The TDA1519C is an integrated class-B dual output amplifier in a 9-lead plastic single in-line (SIL) power or 20-lead heatsink small outline package.

For the TDA1519CTH (SOT418-2) the heatsink is positioned on top of the package, thereby allowing an external heatsink to be mounted on top. The heatsink of the TDA1519CTD (SOT397-1) is facing the PCB thereby allowing the heatsink to be soldered on the copper area of the PCB.
