Features: General
· Double-speed mode
· Digital volume control
· Soft mute function
· 12 dB attenuation
· Low power dissipation
· Digital de-emphasis.
Easy application
· Voltage output
· Only 1st-order analog post-filtering required
· Operational amplifiers and digital filter integrated
· 256fs system clock (fsys)
· I2S-bus or 16, 18 or 20 bits LSB fixed serial input format
· Single rail supply.
High performance
· Superior signal-to-noise ratio
· Wide dynamic range
· No zero crossing distortion
· Inherently monotonic
· Continuous calibration digital-to-analog conversion combined with noise shaping technique.ApplicationThese products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such improper use or sale.

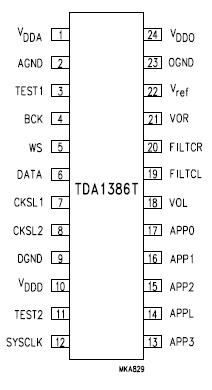

Pinout
Specifications
| SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
MAX. |
UNIT |
| VDDD |
digital supply voltage |
note 1 |
- |
7.0 |
V |
| VDDA |
analog supply voltage |
note 1 |
- |
7.0 |
V |
| VDDO |
operational amplifiers supply voltage |
note 1 |
- |
7.0 |
V |
| Txtal |
maximum crystal temperature |
|
|
+150 |
°C |
| Tstg |
storage temperature |
|
-65 |
+125 |
°C |
| Tamb |
operating ambient temperature |
|
-40 |
+85 |
°C |
| Ves |
electrostatic handling |
note 2 |
-2000 |
+2000 |
V |
| note 3 |
-200 |
+200 |
V |
Notes
1. All VDD and GND connections must be made to the same power supply.
2. Equivalent to discharging a 100 pF capacitor via a 1.5 k series resistor.
3. Equivalent to discharging a 200 pF capacitor via a 2.5 mH series inductor.DescriptionThe TDA1386T is a dual CMOS digital-to-analog converter with up-sampling filter and noise shaper. The combination of oversampling up to 4fs, noise shaping and continuous calibration conversion ensures that only simple 1st order analog post filtering is required.
The TDA1386T supports the I2S-bus data input mode with word lengths of up to 20 bits and the LSB fixed serial data input format with word lengths of 16, 18 or 20 bits. Two cascaded IIR filters increase the sampling rate 4 times.
The DACs of the TDA1386T are of the continuous calibration type and incorporate a special data coding. This ensures a high signal-to-noise ratio, wide dynamic range and immunity to process variation and component ageing.
Two on-board operational amplifiers convert the digital-to-analog current to an output voltage.
TDA1386T Data Sheet
