TDA1315H

Features: ` Transceiver for SPDIF and IEC 958 encoded signals` High sensitivity input for transformer-coupled links` TTL-level input for optical links` Built-in IEC input selector` Built-in IEC feed-through function` Automatic sample frequency (fs) detection` System clock recovery from IEC input...

product image

TDA1315H Picture
See larger image
SeekIC No. : 004516087 Detail

TDA1315H: Features: ` Transceiver for SPDIF and IEC 958 encoded signals` High sensitivity input for transformer-coupled links` TTL-level input for optical links` Built-in IEC input selector` Built-in IEC fe...

TDA1315H Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA1315H
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Transceiver for SPDIF and "IEC 958" encoded signals
` High sensitivity input for transformer-coupled links
` TTL-level input for optical links
` Built-in IEC input selector
` Built-in IEC feed-through function
` Automatic sample frequency (fs) detection
` System clock recovery from IEC input signal
` Low system clock drift when IEC input signal is removed
` Error detection and concealment
` PLL lock detection in transmit mode
` Serial audio interface conforms to I2S-bus format
` Auxiliary I2S-bus input for Analog-to-Digital Converter (ADC)
` Audio output selector
` Microcontroller-controlled and stand-alone mode
` 128-byte buffer for user data
` Bytewise exchange of user data with microcontroller
` Decoding of Compact Disc (CD) subcode Q-channel data
` Support for serial copy management system (SCMS)
` Light Emitting Diode (LED) drive capability (sample frequency and error indication)
` Pin-selectable device address for microcontroller interface
` Power-down mode.


Pinout

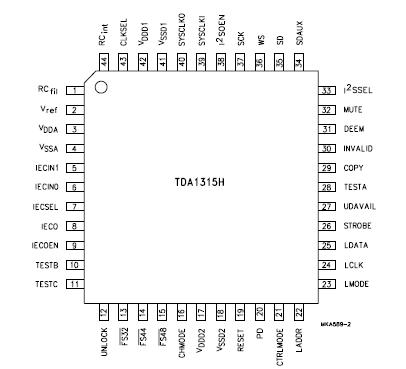

Connection Diagram


Specifications

In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDD supply voltage (pins 3, 17 and 42)   -0.5 +6.5 V
IDD supply current per pin (pins 3, 17 and 42)   - 50 mA
Vall voltage supplied to all pins without current
limitations		 -0.5 VDD + 0.5 V
II/O input/output current on any pin
except supply pins and
pins 8, 12 to 16, 29 and 40		 note 1 - ±10 mA
II input current pins 12 to 16 and 29 VO > VDD + 0.5 V;
output disabled; note 1		 - ±10 mA
II/O input/output current pins 12 to 16 and 29 VO < VDD + 0.5 V;
note 1		 - ±20 mA
I8 input/output current pin 8 note 1 - ±60 mA
I40 input/output current pin 40 note 1



Description

The Digital Audio Input/Output circuit (DAIO) of the TDA1315H is a complete transceiver for biphase-mark encoded digital audio signals that conform to the SPDIF and "IEC 958" interface standards (consumer mode), made in the full CMOS-process C200.

In the receive mode, the TDA1315H adjusts automatically to one of the three standardized sample frequencies (32, 44.1 or 48 kHz), decodes the input signal and separates audio and control data. A clock signal of either 256 or 384 times the sample frequency is generated to serve as a master clock signal in digital audio systems.

In the transmit mode, the TDA1315H multiplexes the audio control and user data and encodes it for subsequent transmission via a cable or optical link.
