TDA1314T

Features: · High dynamic range to enable digital DSP (Digital Signal Processor) volume control· 18 bits data input format for each of the four channels· Four times bit-serial oversampling filter· 1st-order 4fas (audio sampling frequency) noise shaper· Four very low noise DACs· Only 1st-order analo...

product image

TDA1314T Picture
See larger image
SeekIC No. : 004516086 Detail

TDA1314T: Features: · High dynamic range to enable digital DSP (Digital Signal Processor) volume control· 18 bits data input format for each of the four channels· Four times bit-serial oversampling filter· 1s...

TDA1314T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA1314T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· High dynamic range to enable digital DSP (Digital Signal Processor) volume control
· 18 bits data input format for each of the four channels
· Four times bit-serial oversampling filter
· 1st-order 4fas (audio sampling frequency) noise shaper
· Four very low noise DACs
· Only 1st-order analog post filtering required
· Smooth power-on of the DAC output currents
· Because of the automatic digital PLL divider range setting the master clock is selectable in a wide 4fas integer range
· Insensitive to jitter on the I2S-bus signals with respect to the DAC total harmonic distortion deterioration.


Application

· Stand-alone quadruple low noise DAC
· Car radio DAC in conjunction with DSP.


Pinout

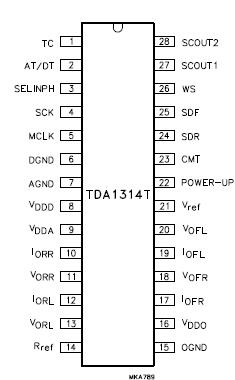

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDDD digital supply voltage note 1 0 6.0 V
VDDA analog supply voltage note 1 0 6.0 V
VDDO operational amplifier supply voltage note 1 0 6.0 V
Vn voltage on any other pin   0 VDD V
Txtal crystal temperature   - +150 °C
Tstg storage temperature   -55 +150 °C
Tamb operating ambient temperature   -40 +85 °C
Ves electrostatic handling note 2 -2000 +2000 V
Notes
1. All voltages (pins 6, 7 and 15) referenced to ground.
2. Equivalent to discharging a 100 pF capacitor through a 1.5 k series resistor.


Description

The TDA1314T is a quadruple very low noise high dynamic range DAC which is intended for use in motor cars and is controlled by the car radio DSP. Each channel incorporates an 8th-order IIR up-sampling filter from 1ASF to 4ASF followed by a 1st-order noise shaper and DAC.

The DAC currents are converted to audio voltage signals using operational amplifiers (one per channel).
