TDA1307

Features: · Multiple format inputs: I2S, Sony 16, 18 and 20-bit· 8-sample interpolation error concealment· Digital mute, attenuation -12 dB· Digital audio output function (biphase-mark encoded) according to IEC 958· Digital silence detection (output)· Digital de-emphasis (selectable, FS-programmab...

product image

TDA1307 Picture
See larger image
SeekIC No. : 004516074 Detail

TDA1307: Features: · Multiple format inputs: I2S, Sony 16, 18 and 20-bit· 8-sample interpolation error concealment· Digital mute, attenuation -12 dB· Digital audio output function (biphase-mark encoded) acco...

TDA1307 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA1307
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Multiple format inputs: I2S, Sony 16, 18 and 20-bit
· 8-sample interpolation error concealment
· Digital mute, attenuation -12 dB
· Digital audio output function (biphase-mark encoded) according to IEC 958
· Digital silence detection (output)
· Digital de-emphasis (selectable, FS-programmable)
· 8 ×oversampling finite impulse response (FIR) filter
· DC-cancelling filter (selectable)
· Peak detection (continuous) and read-out to microprocessor
· Fade function: sophisticated volume control
· Selectable 3rd/4th order noise shaping
· Selectable dither generation and automatic scaling
· Dedicated TDA1547 1-bit output
· Differential mode bitstream: complementary data outputs available
· Simple 3-line serial microprocessor command interface
· Flexible system clock oscillator circuitry
· Power-on reset
· Standby function
· SDIP42 package.


Pinout

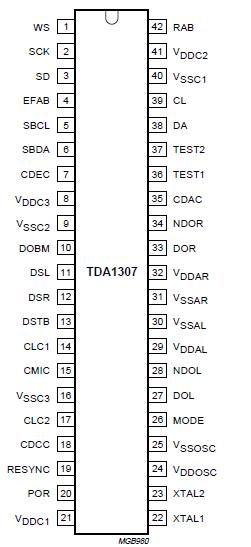

Connection Diagram


Specifications

In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDD supply voltages
(pins 8, 21, 24, 29, 32 and 41)		   -0.5 +6.5 V
VI maximum input voltage note 1 -0.5 VDD + 0.5 V
IIK DC clamp input diode current VI < -0.5 V or
VI > VDD + 0.5 V		 - ±10 mA
IOK DC output clamp diode current;
(output type 4 mA)		 VO < -0.5 V or
VO > VDD + 0.5 V		 - ±20 mA
IO DC output source or sink current;
(output type 4 mA)		 -0.5 V < VO < VDD + 0.5 V - ±20 mA
IDD, ISS DC VDD or GND current per
supply pin		   - ±50 mA
PO, cell power dissipation per output
(type 4 mA)		   - 50 mA
Tstg storage temperature   -55 +150 °C
Tamb operating ambient temperature   -20 +70 °C
Ves electrostatic handling 100 pF; 1.5 k -2000 +2000 V

Note
1. Input voltage should not exceed 6.5 V.




Description

The TDA1307 is an advanced oversampling digital filter employing bitstream conversion technology, which has been designed for use in premium performance digital audio applications. Audio data is input to the TDA1307 through its multiple-format interface. Any of the four formats (I2S, Sony 16, 18 or 20-bit) are acceptable. By using a highly accurate audio data processing structure, including 8 times oversampling digital filtering and up to 4th order noise shaping, a high quality bitstream is produced which, when used in the recommended combination with the TDA1547 bitstream DAC, provides the optimum in dynamic range and signal-to-noise performance. With the TDA1307, a high degree of versatility is achieved by a multitude of functional features and their easy accessibility; error concealment functions,audio peak data information and an advanced patented digital fade function are accessible through a simple microprocessor command interface, which also provides access to various integrated system settings and functions.

TDA1307 plus TDA1547 high-performance bitstream digital filter plus DAC combination:
