Product Details

Description



Features:

The DSIC2 realizes the following servo functions:
` Diode signal preprocessing
` Focus servo loop
` Radial servo loop
` Sledge motor servo loop
` Three-line serial interface via the microcontroller
The other features include:
` Full digital signal processing
` Low power consumption, down to 30 mW
` Low voltage supply 3 to 5.5 V
` Integrated analog-to-digital converters and digital servo loop filters
` Double speed possible
` Easy application
  Single supply voltage
  Small number of external components; only 6 decoupling capacitors
  Flexible system oscillator circuitry
  Usable for single/double Foucault and astigmatic focus
  Full automatic radial error signal initialization offset control and level initialization for track position indicator
  No external adjustments required; no component ageing
  Wide range of adjustable servo characteristics
  Simple 3-line serial command interface
  28-pin SO package
  Great flexibility towards different CD mechanisms
  Full and transparent application information
` High robustness/shock insensitivity
  Sophisticated track-loss (TL) detection mechanism
  Fast focus restart procedure
  Extended radial error signal
  Adjustable radial shock detector
  Defect drop-out detector
` Fully automatic jump procedure for radial servo
` Automatic focus start-up procedure and built-in FOK (Focus OK)
` Fast radial jump or access procedure
` Self-operational servo-control without continuous communication via the microcontroller
` Direct communication to photodiode optics; no external preprocessing.

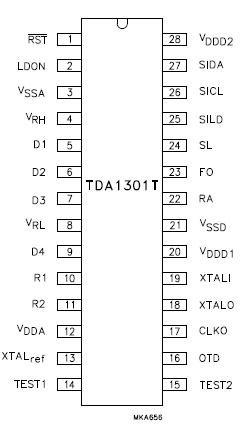

Pinout

Connection Diagram


Specifications

In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL PARAMETER MIN. MAX. UNIT
VDDD digital supply voltage 0 6.5 V
VDDA analog supply voltage 0 6.5 V
VSS difference in ground supply voltage between VSSA and VSSD -5.0 +5.0 mV
Pmax maximum power dissipation - 100 mW
Tstg storage temperature -65 +150 °C
Tamb operating ambient temperature -40 +85 °C



Description

The TDA1301T is a fully digital servo processor which has been designed to provide all servo functions, except the spindle motor control, in two-stage three-spot compact disc systems. The device offers a high degree of integration, combined with the low additional cost of external components. The servo characteristics have a wide range of adjustment via a three-line serial interface. This offers an enormous flexibility with respect to applications for different CD mechanisms. The circuit is optimized for low-power low-voltage applications.
