Features: · Six input buffer amplifiers with low-pass filtering with virtually no offset
· HF data amplifier with a high or low gain mode
· Two built-in equalizers for single or double speed mode ensuring high playability in both modes
· Full automatic laser control including stabilization and an on/off switch and containing a separate supply VDDL for power reduction
· Applicable with N-sub laser with N-sub or P-sub monitor diode
· Adjustable laser bandwidth and laser switch-on current slope
· Protection circuit preventing laser damage due to supply voltage dip
· Optimized interconnect between pick-up detector and TDA1301
· Wide supply voltage range
· Wide temperature range
· Low power consumption.
ApplicationThese products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such improper use or sale.

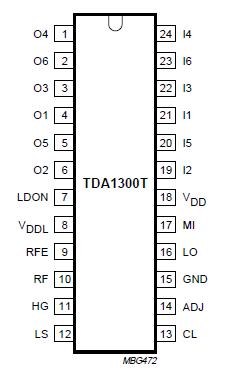

Pinout
Specifications
| SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
MAX. |
UNIT |
| VDD |
supply voltage |
|
- |
8 |
V |
| Pmax |
maximum power dissipation |
|
- |
300 |
mW |
| Tstg |
storage temperature |
|
-65 |
+150 |
°C |
| Tamb |
operating ambient temperature
TDA1300T
TDA1300TT |
|
-40
-40 |
+85
+70 |
°C
°C |
| Ves (1) |
electrostatic handling pin 16 |
note 2 |
-2 |
+2 |
kV |
| electrostatic handling (all other pins) |
|
-3 |
+3 |
kV |
Notes
1. Classification A: human body model; C = 100 pF; R = 1500 ; Ves = ±2000 V.
Charge device model: C = 200 pF; L = 2.5 H; R = 0 ; Ves = 250 V.
2. Equivalent to discharging a 100 pF capacitor through a 1.5 k series resistor.DescriptionThe TDA1300TT is an integrated data amplifier and laser supply for three beam pick-up detectors applied in a wide range of mechanisms for Compact Disc (CD) and read only optical systems. It offers 6 amplifiers which amplify and filter the focus and radial diode signals adequately and provides an equalized RF signal for single or double speed mode which can be switched by means of the speed control pin.
The TDA1300TT can handle astigmatic, single Foucault and double Foucault detectors and is applicable with all N-sub lasers and N-sub or P-sub monitor diode units.
After a single initial adjustment the circuit of the TDA1300TT keeps control over the laser diode current resulting in a constant light output power independent of ageing. The chip is mounted in a small SO24 or TSSOP24 package enabling mounting close to the laser pick-up unit on the sledge.
