TDA1180P

Features: ·NOISE GATED HORIZONTAL SYNC SEPARATOR· NOISE GATED VERTICAL SYNC SEPARATOR· HORIZONTAL OSCILLATOR WITH FREQUENCY RANGE LIMITER· PHASE COMPARATOR BETWEEN SYNC PULSES AND OSCILLATOR PULSES (PLL)· PHASE COMPARATOR BETWEEN FLYBACK PULSES AND OSCILLATOR PULSES (PLL)· LOOP GAIN AND TIME CONST...

product image

TDA1180P Picture
See larger image
SeekIC No. : 004516062 Detail

TDA1180P: Features: ·NOISE GATED HORIZONTAL SYNC SEPARATOR· NOISE GATED VERTICAL SYNC SEPARATOR· HORIZONTAL OSCILLATOR WITH FREQUENCY RANGE LIMITER· PHASE COMPARATOR BETWEEN SYNC PULSES AND OSCILLATOR PULSES ...

TDA1180P Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA1180P
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·NOISE GATED HORIZONTAL SYNC SEPARATOR
· NOISE GATED VERTICAL SYNC SEPARATOR
· HORIZONTAL OSCILLATOR WITH FREQUENCY RANGE LIMITER
· PHASE COMPARATOR BETWEEN SYNC PULSES AND OSCILLATOR PULSES (PLL)
· PHASE COMPARATOR BETWEEN FLYBACK PULSES AND OSCILLATOR PULSES (PLL)
· LOOP GAIN AND TIME CONSTANT SWITCHING ( VCR)
· COMPOSITE BLANKING AND KEY PULSE GENERATOR
· PROTECTION CIRCUITS
· OUTPUT STAGES WITH HIGH CURRENT CAPABILITY


Pinout

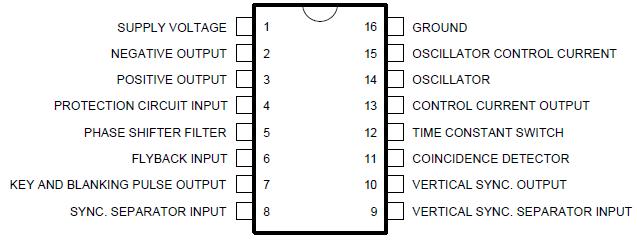

Connection Diagram


Specifications

Symbol Parameter Value Unit
VS Supply voltage (Pin 1) 15 V
V2 Voltage at Pin 2 18 V
V4 Voltage at Pin 4 VS
V8 Voltage at Pin 8 - 6 , VS V
V9 Voltage at Pin 9 ± 6 V
V11 Voltage at Pin 11 VS
I2 Pin 2 peak current 1 A
I3 Pin 3 peak current 0.5 A
I6 Pin 6 current 30 mA
I7 Pin 7 current 20 mA
I10 Pin 10 current 30 mA
Ptot Total power dissipation at Tamb 70 1 W
Tstg , Tj Storage and junction temperature - 40 , + 150



Description

The TDA1180P is a horizontal processor circuit for b.w. and colour monitors. It is a monolithic integrated circuit encapsulated in 16-lead dual in-line plastic package.
