Product Details

Description



Features:

·COMPLETE VERTICAL DEFLECTION SYSTEM
·LOWNOISE SUITABLE FOR HIGH DEFINITION MONITORS

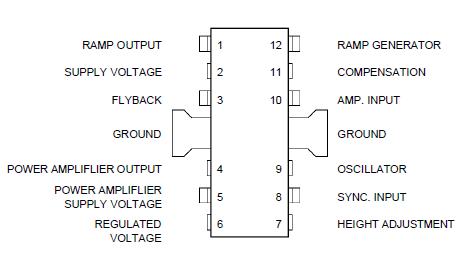

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Unit
VS Supply Voltage at Pin 2 35 V
V4, V5 Flyback Peak Voltage 60 V
V10 Power Amplifier Input Voltage + 10
0.5		 V
V
Io Output Peak Current (non repetitive) at t = 2msec 2 A
Io Output Peak Current at f = 50Hz t 3 10msec 2.5 A
Io Output Peak Current at f = 50Hz t > 10msec 1.5 A
I3 Pin 3 DC Current at V4 < V2 100 mA
I3 Pin 3 Peak to Peak Flyback Current for f = 50Hz, tfly 3 1.5msec 1.8 A
I8 Pin 8 Current ± 20 mA
Ptot Power Dissipation : at Tab = 90°C
at Tamb = 80°C (free air)		 5
1		 W
W
Tstg, Tj Storage and Junction Temperature 40, +150 °C



Description

The TDA1170Nis a monolithic integrated circuit in a 12-lead quad in-line plastic package. It is intended for use in black and white and colour TV receivers. Low-noisemakes this device particularly suitable for use in monitors. The functions incorporated are : synchronization circuit, oscillator and ramp generator, high power gain amplifier, flyback generator, voltage regulator.
