Product Details

Description

Features:

·EXCELLENTVERSATILITY IN USE
·HIGH OUTPUT CURRENT (UP TO 800mA)
·LOW QUIESCENT CURRENT (1.7mA)
·LOW REFERENCE VOLTAGE(1.2V)
·EXCELLENT PARAMETERS STABILITY VERSUS TEMPERATURE

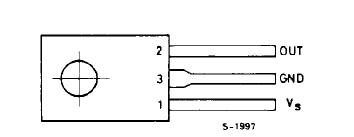

Pinout

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_s	Supply voltage	20	V
P_tot	Total power dissipation at Tamb= 70°C	0.8	W
	at Tcase = 100°C	5	W
T_stg, T_j	Storage and junction temperature	-40 to 150	°C

Description

The TDA1151 is a monolithic integrated circuit in SOT-32 plastic package. It is intended for use as speed regulator for DC motors of record players, tape and cassette recorders, movie cameras, toys etc.
