TD9944

Features: ❏ Dual N-channel devices❏ Low threshold - 2.0V max.❏ High input impedance❏ Low input capacitance - 125pF max.❏ Fast switching speeds❏ Low on resistance❏ Free from secondary breakdown❏ Low input and output leakageApplication❏ ...

product image

TD9944 Picture
See larger image
SeekIC No. : 004516004 Detail

TD9944: Features: ❏ Dual N-channel devices❏ Low threshold - 2.0V max.❏ High input impedance❏ Low input capacitance - 125pF max.❏ Fast switching speeds❏ Low on resis...

TD9944 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TD9944
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

❏ Dual N-channel devices
❏ Low threshold - 2.0V max.
❏ High input impedance
❏ Low input capacitance - 125pF max.
❏ Fast switching speeds
❏ Low on resistance
❏ Free from secondary breakdown
❏ Low input and output leakage


Application

❏ Logic level interfaces ideal for TTL and CMOS
❏ Solid state relays
❏ Battery operated systems
❏ Photo voltaic drives
❏ Analog switches
❏ General purpose line drivers
❏ Telecom switches

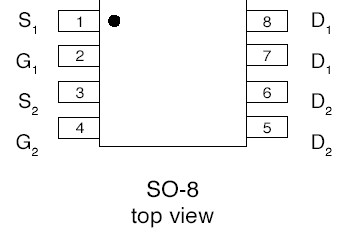

Pinout

Connection Diagram


Specifications

Drain-to-Source Voltage............................................ BVDSS
Drain-to-Gate Voltage ...............................................BVDGS
Gate-to-Source Voltage .............................................± 20V
Operating and Storage Temperature..... -55°C to +150°C
Soldering Temperature* ..........................................300°C
* Distance of 1.6 mm from case for 10 seconds.
