Description



Features:

· High-speed operation ........................ tpd = 4.8 ns (typ.)
· Symmetrical output impedance ....... IOH = −15 mA (max)
    IOL = 48 mA (max)
· Low power dissipation ...................... ICCD = 8 mA (typ.)
    ICCZ = 10 A (typ.)
· Operating temperature range ..... Ta = −40°C to 85°C
· High ESD protection ................... 2000 V (MIL standard)
· Pin and function compatible with FAST (74F541)


Pinout

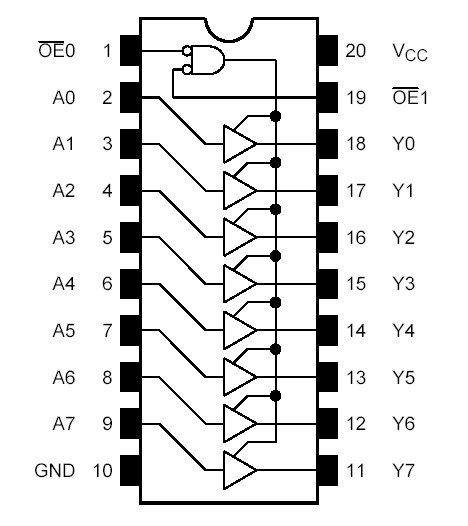

Connection Diagram


Specifications

Characteristics
Symbol
Rating
Unit
Power supply voltage
VCC
-0.5 to 7.0
V
Input voltage
VIN
-1.2 to VCC + 0.5
V
Output voltage
VO
-0.5 to VCC +0.5
V
Input clamp diode current
IIK
±30
mA
Output clamp diode current
IOK
-30
mA
Output current (output low state)
IOL
96
mA

Power dissipation

 BC541P
BC541F
PD
1380 (Note 1)
860 (Note 1)
mW
Storage temperature
Tstg
-65 to 150
Note 1: Ta = 25
