Features:

• Compliance With TIA IS-54B Dual-Mode Cellular Standard
• Baseband Transmit Digital-to-Analog (D/A) Conversion and Receive Analog-to-Digital (A/D) Conversion in Analog Transmit Mode Using Dual 10-Bit Sigma-Delta Converters
• Square Root Raised Cosine (SQRC) Filtering in the Digital Mode Using Dual 10-Bit Sigma-Delta Converters
• p/4-Differential Quadrature Phase-Shift Key (DQPSK) Modulation Encoder in Digital Transmit Mode
• Power Control Supervision for Radio Frequency (RF) Power Amplifier, Automatic Frequency Control (AFC), Automatic Gain Control (AGC), and Synthesizer
• Received Signal Strength Indicator (RSSI) and Battery-Level A/D Conversion Circuitry
• Internal Clock Generation
• WBD Clock Recovery and Manchester Decoding
• General-Purpose DSP and Microcontroller Interface
• 3.3-V and 5-V Operation
• Low Power Consumption




Pinout

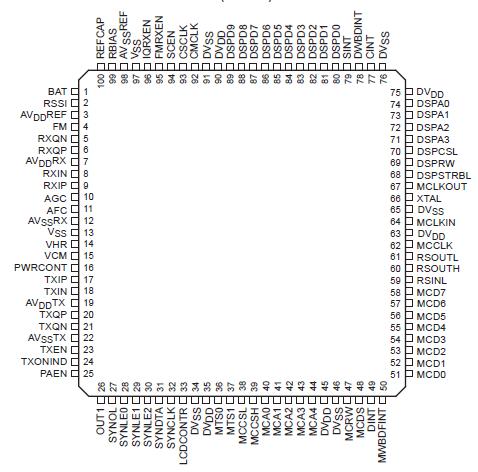

Connection Diagram


Specifications

Supply voltage range:
DVDD (see Notes 1 and 2) . . . . . . . . . . . . . . . . . . . . . . VSS 0.3 V to AVDD +0.3 V
AVDD (see Notes 2 and 3) . . . . . . . . . . . . . . . . . . . . . . . VSS 0.3 V to DVDD +0.3 V
Input voltage range, VI: Digital signals . . . . . . . . . . . . . . . . . VSS 0.3 V to DVDD +0.3 V
Analog signals . . . . . . . . . . . . . . . . VSS 0.3 V to AVDD +0.3 V
Output voltage range, VO: Digital signals . . . . . . . . . . . . . . . . . . . . . . . . . . . VSS to DVDD
Analog signals . . . . . . . . . . . . . . . . . . . . . . . . . . . VSS to AVDD
Continuous total power dissipation . . . . . . . . . . . . . . . . . . . See Dissipation Rating Table
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to 85°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Lead temperature 1.6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . 260°C


† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTES:
1. Voltage values are with respect DVSS.
2. Maximum supplied voltage should not exceed 6 V.
3. Voltage values are with respect to AVSS.
