TCM38C17IDL

Conversion Rate :
Resolution :
Operating Supply Voltage :
Packaging :
Maximum Operating Temperature : + 85 C
Mounting Style : SMD/SMT
Number of ADC Inputs : 1
Number of DAC Outputs : 1
Interface Type : Serial
Package / Case : SSOP-48


Features:

` Single 5-V Supply
` Replaces Four TCM29C13-Type Combos (CODEC and Filters)
` Meets CCITT/(D3/D4) G.711 and G.714 Channel Bank Specifications
` Advanced Switched-Capacitor Filters and Sigma-Delta A/D and D/A Converter Technology With DSP Filtering
` m-Law or A-Law Companding - Pin-Selectable
` 2.048 MHz Operation
` 8 Vpp Full-Signal Differential Receiver Output
` Differential Signal Processing Architecture
` Low Crosstalk (< 100 dB), Low Idle-Channel Noise, and Good Power Supply Rejection
`  Single PCM I/O for Simplified PCM Interface
`  Reliable Submicron Silicon-Gate CMOS Technology

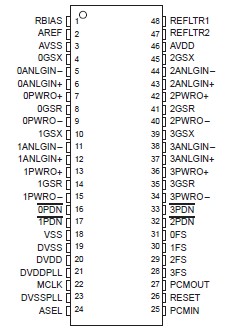

Pinout




Specifications

Supply voltage range, V_DD (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 7 V
Input voltage range, V_I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 7 V
Digital ground voltage range, V_O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 7 V
Operating free-air temperature range, T_A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 to 85
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  65 to 150

† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTE 1: Voltage values are with respect to AVSS.

Description

The TCM38C17IDL QComboE is a 4-channel single-chip PCM combo (pulse-code-modulated CODEC with a voice-band filtering) device. It performs the transmit encoding (A/D conversion) and receive decoding (D/A conversion), as well as the transmit and receive filtering functions required to meet CCITT G.711 and G.714 specifications in a PCM system. Each channel provides all the functions required to interface a full-duplex, 4-line voice telephone circuit with a TDM (time-division-multiplexed) system. The TCM38C17IDL is specifically designed for fixed-data-rate applications and is intended to replace four TCM29C13-type devices.

Primary applications of the TCM38C17IDL include digital transmission and switching of E1 carrier, PABX (private automatic branch xchange), and central office telephone systems and subscriber line concentrators. The device serves as the analog termination of a PCM line or trunk to the POTS (plain old telephone system) local-loop line.

Other applications of the TCM38C17IDL include any PCM digital-audio interface such as voice-band data storage systems and many digital signal processing applications that can benefit from the reduced footprint of a quad codec configuration and single-rail operation. Dynamic range and excellent idle-channel noise performance are maintained using the TI advanced 4Vt process technologies.

Parameters:

Technical/Catalog Information	TCM38C17IDL
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Type	PCM
Number of ADCs / DACs	4 / 4
Dynamic Range, ADCs / DACs (db) Typ	-
S/N Ratio, ADCs / DACs (db) Typ	-
Resolution (Bits)	-
Voltage - Supply, Analog	4.75 V ~ 5.25 V
Voltage - Supply, Digital	4.75 V ~ 5.25 V
Mounting Type	Surface Mount
Package / Case	48-SSOP
Packaging	Tube
Operating Temperature	-40°C ~ 85°C
Sigma Delta	Yes
Interface	PCM
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TCM38C17IDL TCM38C17IDL 296 1761 5 ND 29617615ND 296-1761-5
