Position: Home  > All Categories> Integrated Circuits (ICs) > TCM29C23

TCM29C23

Features: ` Combined ADC, DAC, and Filters` Extended Variable Frequency Operation Master Clock Up to 4.096 MHz Sample Rates Up to 16 kHz Passband Up to 6 kHz` Reliable Silicon-Gate CMOS Technology` Low Power Consumption Operating Mode . . . 80 mW Typical Power-Down Mode . . . 5 mW Typical` Excelle...

product image

TCM29C23 Picture
See larger image
SeekIC No. : 004515620 Detail

TCM29C23: Features: ` Combined ADC, DAC, and Filters` Extended Variable Frequency Operation Master Clock Up to 4.096 MHz Sample Rates Up to 16 kHz Passband Up to 6 kHz` Reliable Silicon-Gate CMOS Technology` ...

TCM29C23 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TCM29C23
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Combined ADC, DAC, and Filters
` Extended Variable Frequency Operation
Master Clock Up to 4.096 MHz
Sample Rates Up to 16 kHz
Passband Up to 6 kHz
` Reliable Silicon-Gate CMOS Technology
` Low Power Consumption
Operating Mode . . . 80 mW Typical
Power-Down Mode . . . 5 mW Typical
` Excellent Power-Supply Rejection Ratio Over Frequency Range of 0 to 50 kHz
` No External Components Needed for Sample, Hold, and Autozero Functions
` Precision Internal Voltage References
` m-law and A-law Coding


Pinout

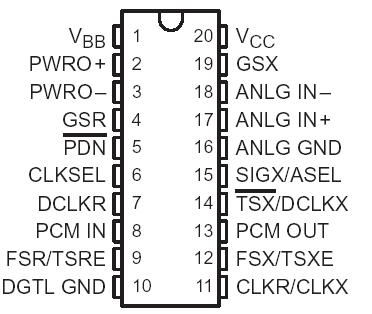

Connection Diagram


Specifications

Supply voltage range, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to 15 V
Output voltage range, VO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to 15 V
Input voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to 15 V
Digital ground voltage range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to 15 V
Operating free-air temperature range, TA:TCM29C23 . . . . . . . . . . . . . . . . . . . . ..0°C to70°C
Operating free-air temperature range, TATCM129C23 . . . . . . . . . . . . . . . . .  40°C to 85°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: DW or N package . . .260°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: Voltage values for maximum ratings are with respect to VBB.




Description

The TCM29C23 and TCM129C23 are single-chip PCM codecs (pulse-code-modulated encoders and decoders) and PCM lines filters. These devices provide all the functions required to interface a full-duplex (4-wire) voice telephone circuit with a TDM (time-division-multiplexed) system. Primary applications include digital encryption systems, digital voice-band data storage systems, digital signal processing, and mobile telephones.

These devices are designed to perform the transmit encoding (A/D conversion) and receive decoding (D/A conversion) as well as the transmit and receive filtering functions in a pulse-code-modulated system. They are intended to be used at the analog termination of a PCM line or trunk.

The TCM29C23 and TCM129C23 provide the band-pass filtering of the analog signals prior to encoding and after decoding. These combination devices perform the encoding and decoding of voice and call progress tones as well as the signaling supervision information.

The TCM29C23 is characterized for operation from 0°C to 70°C. The TCM129C23 is characterized for operation from 40°C to 85°C.




Customers Who Bought This Item Also Bought

Margin,quality,low-cost products with low minimum orders. Secure your online payments with SeekIC Buyer Protection.
You may also be interested in :
View more
