TC94A09F

Features: · Single-chip CD processor with built-in CMOS LCD/LED driver and 4-bit microcontroller· Operating voltageAt CD on:VDD · 4.5 to 5.5 V (typ. 5.0 V)At CD off: VDD · 3.0 to 5.5 V (only CPU on)· Current dissipationAt CD on: IDD · 50 mA (typ.) At CD off: IDD · 2 mA (with 4.5 MHz crystal oscill...

product image

TC94A09F Picture
See larger image
SeekIC No. : 004515332 Detail

TC94A09F: Features: · Single-chip CD processor with built-in CMOS LCD/LED driver and 4-bit microcontroller· Operating voltageAt CD on:VDD · 4.5 to 5.5 V (typ. 5.0 V)At CD off: VDD · 3.0 to 5.5 V (only CPU on)...

TC94A09F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TC94A09F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Single-chip CD processor with built-in CMOS LCD/LED driver and 4-bit microcontroller
· Operating voltage                                             At CD on:VDD · 4.5 to 5.5 V (typ. 5.0 V)
                                                                            At CD off: VDD · 3.0 to 5.5 V (only CPU on)
· Current dissipation                                            At CD on: IDD · 50 mA (typ.)
                                                                            At CD off: IDD · 2 mA (with 4.5 MHz crystal oscillator, only CPU on)
                                                                            At CD off: IDD · 0.3 mA (with 75 kHz crystal oscillator, only CPU on)
· Operating temperature range                            Ta ·=40 to 85°C
· Package                                                              QFP100-P-1420-0.65A (0.65 mm pitch, 2.7 mm thick)
· One-time PROM version                                      TC94AP09F


Pinout

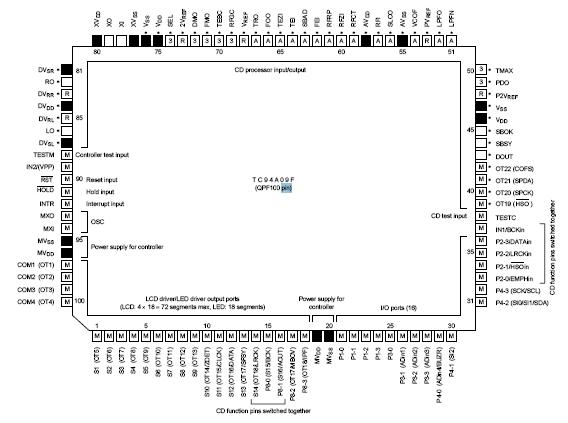

Connection Diagram


Specifications

Characteristics Symbol Test Condition
Power supply voltage VDD 0.3~6.0 (MVDD
 VDD)		 V
MVDD
Input voltage VDD power
supply pin		 VIN1 0.3~VDD + 0.3 V
MVDD power
supply pin		 VIN2 0.3~MVDD + 0.3
Power dissipation PD 1400 mW
Operating temperature Topr -40~85 °C
Storage temperature Tstg -65~150 °C



Description

The TC94A09F is a single-chip CD processor for digital servo. The IC has a built-in 4-bit microcontroller.

The TC94A09F controller features an LCD/LED driver, 4-channel 6-bit AD converter, 2/3-line serial interface, buzzer, interrupt function, and 8-bit timer/counter. The CPU can select one of three crystal oscillator operating clocks (16.9344 MHz, 4.5 MHz, and 75 kHz), facilitating interface with the CD processor.

The CD processor incorporates sync separation protection and interpolation, EFM decoder, error correction, digital equalizer for servo, and servo controller. The CD processor also incorporates a 1-bit DA converter. In combination with a RF amp TA2153FN and TA2109F, the TC94A09F can very simply configure an adjustment-free CD player.  Thus, the IC is suitable for CD systems for automobiles and radio-cassette players.
