TC9491B

Features:

Temperature Coefficient .........................   50ppm/°C
Wide Operating Current Range .......    15µA to 20mA
Dynamic Impedance ......................................... 0.6Ω
Output Tolerance ...................................... 1% or 2%
Output Voltage Option .................................. 1.220V
TO-92 Plastic Package
8-Pin Plastic Small Outline (SO) Package

Application

ADC and DAC Reference
Current Source Generation
Threshold Detectors
Power Supplies
Multi-meters

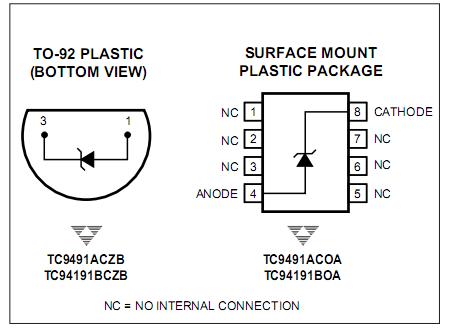

Pinout




Specifications

Forward Current .................................................... +10mA
Reverse Current .................................................... +30mA
Storage Temperature Range ................ 65°C to +150°C
Operating Temperature Range
TO-92 Package .....................................       0°C to +70°C
COA Surface Mount Package ...............        0°C to +70°C
Lead Temperature (Soldering, 10 sec)
TO-92 Package ..............................................       +300°C
COA Surface Mount Package ........................        +300°C
Power Dissipation
                                Limited by Forward/Reverse Current


Description

The TC9491 (1.220V output) bipolar, two-terminal, bandgap voltage references offer precision performance without premium price. These TC9491 devices do not require thinfilm resistors, greatly lowering manufacturing complexity and cost. A 50ppm/°C output temperature coefficient and a 15µA to 20mA operating current range make these devices attractive for multimeter, data acquisition converter, and telecommunication voltage references.
