TC90A58F

Features: 3-channel, 8-bit AD converter (input amplitude: 1.32 Vp-p)Y, Cb and Cr or R, G and B inputs. Pedestal clamp (Y or RGB: 16 LSB (in 8-bit conversion), Cb, Cr: 128 LSB (in 8-bit conversion)Switchable between external input or internal generation of clamp pulseOperates at 30 MHz maximum.Digi...

product image

TC90A58F Picture
See larger image
SeekIC No. : 004515200 Detail

TC90A58F: Features: 3-channel, 8-bit AD converter (input amplitude: 1.32 Vp-p)Y, Cb and Cr or R, G and B inputs. Pedestal clamp (Y or RGB: 16 LSB (in 8-bit conversion), Cb, Cr: 128 LSB (in 8-bit conversion)Sw...

TC90A58F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TC90A58F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

3-channel, 8-bit AD converter (input amplitude: 1.32 Vp-p)
Y, Cb and Cr or R, G and B inputs.
Pedestal clamp (Y or RGB: 16 LSB (in 8-bit conversion), Cb, Cr: 128 LSB (in 8-bit conversion)
Switchable between external input or internal generation of clamp pulse
Operates at 30 MHz maximum.
Digital filter (Y: 6 MHz, Cb, Cr: 2.8 MHz/6 MHz)
 10-bit output (only for 2-channel ADC)
Horizontal PLL (HPLL)
ITU-R601 and ITU-R656 formats supported(For ITU-R656, HD and VD must be input.)
Y-signal delay circuit (delay amount can be set from 0 to 14 clocks,
I2C bus control
Built-in color bar generator


Pinout

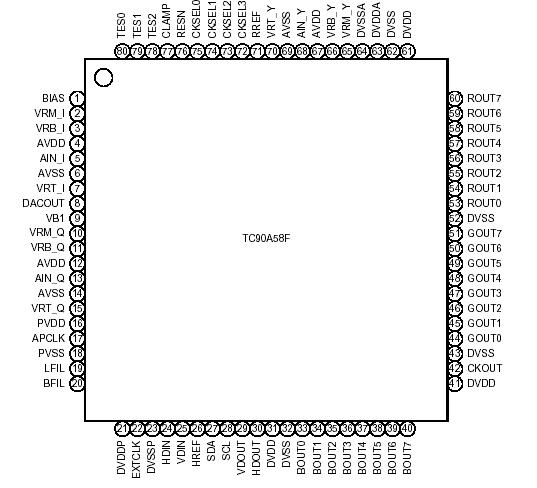

Connection Diagram


Description

The TC90A58F is a 3-channel AD converter for video applications which incorporates a clamp circuit. The 10-bit converter can be used as either an 8-bit 3-channel AD converter or as a 10-bit 2-channel AD converter.
