TC83230-0015

Features: Print: 10 or 12 digits of data. (including decimal point.) 1 digit of floating minus sign, 1 digit of operational symbol. 1-color printing (black).Display: 10 or 12 digits of data. (including punctuation in each digit.) 1 digit of floating minus sign, memory load, error symbol, grand tot...

product image

TC83230-0015 Picture
See larger image
SeekIC No. : 004515165 Detail

TC83230-0015: Features: Print: 10 or 12 digits of data. (including decimal point.) 1 digit of floating minus sign, 1 digit of operational symbol. 1-color printing (black).Display: 10 or 12 digits of data. (includ...

TC83230-0015 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TC83230-0015
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Print: 10 or 12 digits of data. (including decimal point.) 1 digit of floating minus sign, 1 digit of operational symbol. 1-color printing (black).
Display: 10 or 12 digits of data. (including punctuation in each digit.) 1 digit of floating minus sign, memory load, error symbol, grand total memory load, 3 digits of commas.
Decimal output: Decimal set lock key controls output format. Fixed decimal setting ("0", "1", "2", "3", "4", "6"), full floating decimal, ADD mode and ADD2 mode.
Key-input buffer: 12 words
Operation methods: Addition and subtraction: By ARITHMETIC operation Multiplication and division: By algebraic operation
Function: Four function, repeat multiplication and division, mixed calculation, percentage calculation,
percent discount and add-on calculation, memory calculation, delta percent calculation, add-mode
calculation, mark-up/down calculation, total calculation, constant calculation, tax calculation
Two-key rollover.
Leading zero suppression
Weight: 1.52 g (typ.)


Pinout

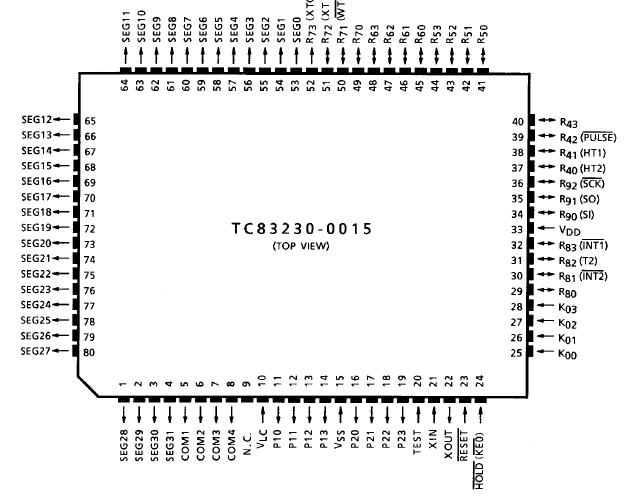

Connection Diagram


Description

The TC83230-0015 LSI is a single-chip CMOS LSI for use incalculators with printers.

TC83230-0015 integrates I/O logic circuits necessary to configure a calculator with 10- or 12-digit display, two-memory function, two-tax function, serial printer used to print calculation results, oscillator, and LCD drivers.
