TC7WZ32FU

Features: High output drive: ±24 mA (min) @VCC = 3 V Super high speed operation: tpd 2.4 ns (typ.) @VCC = 5 V, 50 pF Operation voltage range: VCC (opr) = 1.65~5.5 VLatch-up performance: ±500 mA or more ESD performance: ±200 V or more (JEITA) ±2000 V or more (MIL)Power down protection is provided ...

product image

TC7WZ32FU Picture
See larger image
SeekIC No. : 004515134 Detail

TC7WZ32FU: Features: High output drive: ±24 mA (min) @VCC = 3 V Super high speed operation: tpd 2.4 ns (typ.) @VCC = 5 V, 50 pF Operation voltage range: VCC (opr) = 1.65~5.5 VLatch-up performance: ±500 mA or ...

TC7WZ32FU Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TC7WZ32FU
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

High output drive: ±24 mA (min) @VCC = 3 V
Super high speed operation: tpd 2.4 ns (typ.) @VCC = 5 V, 50 pF
Operation voltage range: VCC (opr) = 1.65~5.5 V
 Latch-up performance: ±500 mA or more
ESD performance: ±200 V or more (JEITA)
                                ±2000 V or more (MIL)
 Power down protection is provided on all inputs and outputs.
 Matches the performance of TC74LCX series when operated at 3.3 V VCC.


Pinout

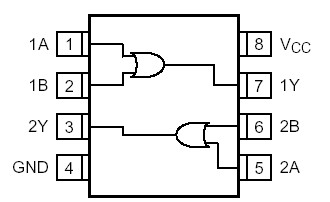

Connection Diagram


Specifications

Characteristics
Symbol
Rating
Unit
Supply voltage range
VCC
−0.5~6
V
DC input voltage
VIN
−0.5~6
V
DC switch voltage
VOUT
−0.5~6
V
Input diode current
IIK
−20
mA
Output diode current
IOK
−20
mA
DC output current
IOUT
±50
mA
DC VCC/ground current
ICC
±50
mA
Power dissipation
PD
300 (SM8)
200 (US8)
mW
Storage temperature
Tstg
−65~150
°C
Lead temperature (10s)
TL
260
°C
