TC7SB384FU

Features: Operating voltage: VCC = 4.5~5.5 VHigh speed operation: tpd = 0.25 ns (max)Low on resistance: RON = 5 Ω (typ.)ESD performance: Machine model > ±200 V Human body model > ±2000 V TTL level input (control input) Package: USVPinoutSpecifications Characteristics Symbol ...

product image

TC7SB384FU Picture
See larger image
SeekIC No. : 004514886 Detail

TC7SB384FU: Features: Operating voltage: VCC = 4.5~5.5 VHigh speed operation: tpd = 0.25 ns (max)Low on resistance: RON = 5 Ω (typ.)ESD performance: Machine model > ±200 V Human body model > ±2000 V...

TC7SB384FU Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TC7SB384FU
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Operating voltage: VCC = 4.5~5.5 V
 High speed operation: tpd = 0.25 ns (max)
 Low on resistance: RON = 5 Ω (typ.)
 ESD performance: Machine model > ±200 V
                                Human body model > ±2000 V
TTL level input (control input)
Package: USV


Pinout

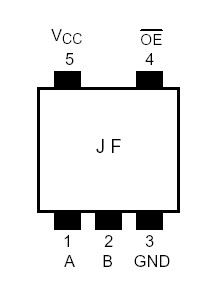

Connection Diagram


Specifications

Characteristics
Symbol
Rating
Unit
Supply voltage range
VCC
−0.5~7.0
V
DC input voltage
VIN
−0.5~7.0
V
DC switch voltage
VS
−0.5~7.0
V
Input diode current
IIK
−20
mA
Continuous channel current
IS
128
mA
Power dissipation
PD
200
mW
DC VCC/ground current
ICC/IGND
±100
mA
Storage temperature
Tstg
−65~150
°C



Description

The TC7SB384FU provides single bit of high-speed TTL-compatible switching. The low on resistance of the switch allows connections to be made with minimal propagation delay.

The TC7SB384FU is organized as just 1-bit low-impedance switch with output-enable (OE) input. When OE is low, the switch is on and data can flow from port A to port B, or vice versa. When OE is high, the switch is open and a high-impedance state exists between the two ports.

All inputs of TC7SB384FU are equipped with protection circuits against static discharge.
