TC7PG04AFE

Features: • High-level output current: IOH/IOL = ±8 mA (min) at VCC = 3 V• High-speed operation: tpd = 2.8 ns (typ.) at VCC = 3.3 V, 15pF• Operating voltage range: VCC = 0.9~3.6 V• 5.5-V tolerant inputsPinoutSpecifications Characteristics Symbol Value Unit...

product image

TC7PG04AFE Picture
See larger image
SeekIC No. : 004514865 Detail

TC7PG04AFE: Features: • High-level output current: IOH/IOL = ±8 mA (min) at VCC = 3 V• High-speed operation: tpd = 2.8 ns (typ.) at VCC = 3.3 V, 15pF• Operating voltage range: VCC = 0.9~3.6 V&...

TC7PG04AFE Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TC7PG04AFE
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High-level output current: IOH/IOL = ±8 mA (min) at VCC = 3 V
• High-speed operation: tpd = 2.8 ns (typ.) at VCC = 3.3 V, 15pF
• Operating voltage range: VCC = 0.9~3.6 V
• 5.5-V tolerant inputs


Pinout

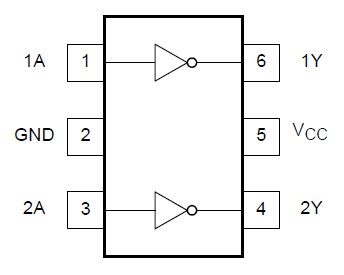

Connection Diagram


Specifications

Characteristics
Symbol
Value
Unit
Power supply voltage
VCC
−0.5~4.6
V
DC input voltage
VIN
−0.5~7.0
V
DC output voltage
VOUT
−0.5~VCC + 0.5
V
Input diode current
IIK
−20
mA
Output diode current
IOK
±20 (Note 1)
mA
DC output current
IOUT
±25
mA
DC VCC/GND current
ICC
±100
mA
Power dissipation
PD
150
mW
Storage temperature
Tstg
−65~150
°C
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings and the operating ranges.

Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook ("Handling Precautions"/Derating Concept and Methods) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Note 1: VOUT < GND, VOUT > VCC
