TC7PA53FU

Features: Ultra-high speed operation: tpd = 0.4 ns (max) @VCC = 3.6 V, CL = 30 pFUltra-low on resistance: RON = 21 Ω (max) @VCC = 3.6 VOperating voltage range: VCC (opr) = 1.8 to 3.6 VHigh latch-up immunity: Higher than or equal to ±500 mAHigh ESD: Higher than or equal to ±200 V (JEITA) : H...

product image

TC7PA53FU Picture
See larger image
SeekIC No. : 004514860 Detail

TC7PA53FU: Features: Ultra-high speed operation: tpd = 0.4 ns (max) @VCC = 3.6 V, CL = 30 pFUltra-low on resistance: RON = 21 Ω (max) @VCC = 3.6 VOperating voltage range: VCC (opr) = 1.8 to 3.6 VHigh la...

TC7PA53FU Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TC7PA53FU
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Ultra-high speed operation: tpd = 0.4 ns (max) @VCC = 3.6 V,
                                               CL = 30 pF
 Ultra-low on resistance: RON = 21 Ω (max) @VCC = 3.6 V
 Operating voltage range: VCC (opr) = 1.8 to 3.6 V
 High latch-up immunity: Higher than or equal to ±500 mA
 High ESD: Higher than or equal to ±200 V (JEITA)
                 : Higher than or equal to ±2000 V (MIL)
Power-down protection provided on all input pins


Pinout

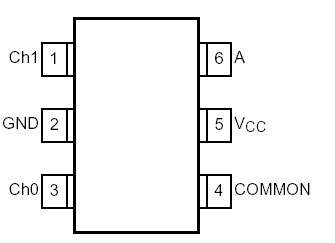

Connection Diagram


Specifications

Characteristics
Symbol
Rating
Unit
Supply voltage range
VCC
−0.5~7.0
V
DC input voltage
VIN
−0.5~7.0
V
Switch I/O voltage
VS
−0.5~VCC + 0.5
V
Clamp diode
current		 Control input block
IIK
−50
mA
Switch block
±50
Switch through current
IT
100
mA
Power dissipation
PD
200
mW
DC VCC/ground current
ICC
±75
mA
Storage temperature
Tstg
−65~150
°C
