TC7800A

Features: ` Output Current in Excess of 1.0A` No External Components Required` Internal Thermal Overload Protection` Internal Short Circuit Current Limiting` Output Transistor SafeArea Compensation` Output Voltage Offered in 2% Tolerance` Available in Surface Mount DDPAK and Standard 3Lead Transis...

product image

TC7800A Picture
See larger image
SeekIC No. : 004514750 Detail

TC7800A: Features: ` Output Current in Excess of 1.0A` No External Components Required` Internal Thermal Overload Protection` Internal Short Circuit Current Limiting` Output Transistor SafeArea Compensation`...

TC7800A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TC7800A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Output Current in Excess of 1.0A
` No External Components Required
` Internal Thermal Overload Protection
` Internal Short Circuit Current Limiting
` Output Transistor SafeArea Compensation
` Output Voltage Offered in 2% Tolerance
` Available in Surface Mount DDPAK and Standard 3Lead Transistor Packages
` Previous Commercial Temperature Range has
    been Extended to a Junction Temperature Range of 40°C to +125°C

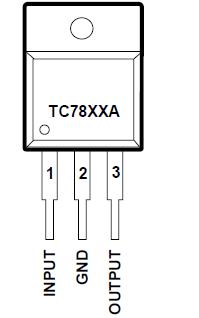

Pinout

Connection Diagram


Specifications

Input Voltage(5.0 18V)......................VIN = 35VDC
(24V)  ................................VIN = 40VDC
Power Dissipation (TA = 25°C) ............ PD = Internally Limited W
Case TO-220B
Thermal Resistance,
Junction-to-Ambient........................JA = 65°C/W
Junction-to-Case .........................JC = 5.0°C/W
Power Dissipation (TA = 25°C) ............ PD = Internally Limited W
DDPAK-B
Thermal Resistance,
Junction-to-Ambient   ................JA = (See Figure 13) °C/W
Junction-to-Case .........................JA = 5.0°C/W
Storage Junction
Temperature Range ................. TSTG = 65°C to +150°C
Operating Junction Temperature ..................TJ = +150°C

*Note: ESD Data Available upon request.


Description

The TC7800A is monolithic integrated circuits designed as fixedvoltage regulators for a wide variety of applications including local, oncard regulation. The TC7800A employ internal current limiting, thermal shutdown, and safearea compensation. With adequate heatsinking they can deliver output currents in excess of 1.0A. Although designed primarily as a fixed voltage regulator, these devices can be used with external components to obtain adjustable voltages and currents.
