TC74VCXH16646FT

Features:

·Low-voltage operation: V_CC = 1.8 to 3.6 V
·Bushold on data inputs eliminating the need for external pull-up/pull-down resistors
·High-speed operation : tpd = 2.9 ns (max) (V_CC = 3.0 to 3.6 V)
·t_pd = 3.5 ns (max) (V_CC = 2.3 to 2.7 V)
·t_pd = 7.0 ns (max) (V_CC = 1.8 V)
·3.6-V tolerant control inputs
·Output current : I_OH/I_OL = ±24 mA (min) (V_CC = 3.0 V)
·I_OH/I_OL = ±18 mA (min) (V_CC = 2.3 V)
·I_OH/I_OL = ±6 mA (min) (V_CC = 1.8 V)
·Latch-up performance: ±300 mA
·ESD performance : Machine model > ±200 V
·Human body model > ±2000 V
·Package: TSSOP (thin shrink small outline package)

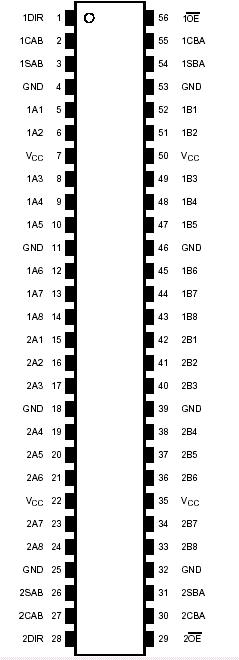

Pinout




Specifications

Characteristics		Symbol	Rating	Unit
Power supply voltage		VCC	0.5 to 4.6	V
DC input voltage	(DIR, OE , CAB, CBA,SAB, SBA)	VINVI/O	0.5 to 4.6	V
	(An, Bn)		0.5* to VCC + 0.5(Note 2)
DC input voltage	(An, Bn)	VOUT	0.5* to VCC + 0.5(Note 3)	V
Input diode current		IIK	50	mA
Output diode current		IOK	±50 (Note 4)	mA
Output current		IOUT	±50	mA
Power dissipation		PD	400	mA
DC VCC/ground current per supply pin		ICC/IGND	±100	mW
Storage temperature		Tstg	-65 to 150	°C

Description

The TC74VCXH16646FT is a high-performance CMOS 16-bit bus transceiver/register. Designed for use in 1.8-V, 2.5-V or 3.3-V systems, it achieves high-speed operation while maintaining the CMOS low power dissipation.

The TC74VCXH16646FT is bus transceiver with 3-state outputs, D-type flip-flops, and control circuitry arranged for multiplexed transmission of data directly from the internal registers.

The A, B data inputs of TC74VCXH16646FT  include active bushold circuitry, eliminating the need for external pull-up resisisors to hold unused or floating data inputs at a valid logic level.

All inputs ofTC74VCXH16646FT are equipped with protection circuits against static discharge.
