TC74VCXH162374FT

Features:

26-Ω series resistors on outputs
Low-voltage operation: V_CC = 1.8 to 3.6 V
Bushold on data inputs eliminating the need for external pull-up/pull-down resistors
High-speed operation : t_pd = 3.4 ns (max) (V_CC = 3.0 to 3.6 V)
t_pd = 4.8 ns (max) (V_CC = 2.3 to 2.7 V)
t_pd = 6.0 ns (max) (VCC = 1.8 V)
Output current : I_OH/I_OL = ±12 mA (min) (V_CC = 3.0 V)
I_OH/I_OL = ±8 mA (min) (V_CC = 2.3 V)
I_OH/I_OL = ±4 mA (min) (V_CC = 1.8 V)
Latch-up performance: ±300 mA
ESD performance : Machine model > ±200 V
Human body model > ±2000 V
Package: TSSOP (thin shrink small outline package)
3.6-V tolerant function and power-down protection control inputs and outputs

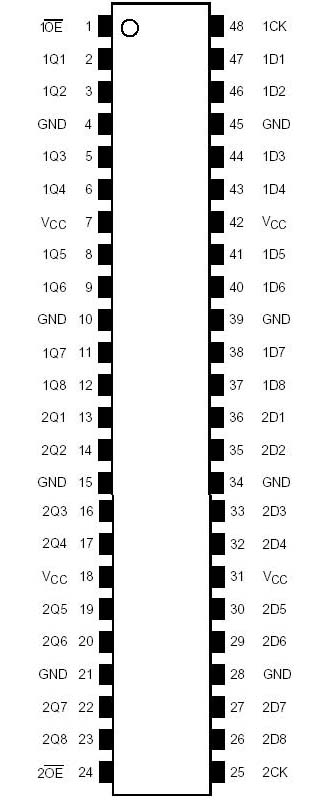

Pinout




Description

The TC74VCXH162374FT is a high-performance CMOS 16-bit D-type flip-flop. Designed for use in 1.8-V, 2.5-V or 3.3-V systems, TC74VCXH162374FT achieves high-speed operation while maintaining the CMOS low power dissipation.
This 16-bit D-type flip-flop is controlled by a clock input (CK) and a output enable input (OE) which are common to each byte.TC74VCXH162374FT can be used as two 8-bit flip-flops or one 16-bit flip-flop. Whenthe OE input is high, the outputs are in a high impedance state.
The 26-Ω series resistor helps reducing output overshoot and undershoot without external resistor.
The D data inputs include active bushold circuitry, eliminating the need for external pull-up resisisors to hold unused or floating data inputs at a valid logic level.
All inputs of TC74VCXH162374FT are equipped with protection circuits against static discharge.
