Product Details

Description



Features:

Bidirectional interface between 1.8-V and 2.5 V, 1.8-V and 3.6-V or 2.5 V and 3.6-V buses
High-speed operation: tpd = 7.0 ns (max) (VCCB = 1.8 ± 0.15 V, VCCA = 2.5 ± 0.2 V)
                                       : tpd = 7.1 ns (max) (VCCB = 1.8 ± 0.15 V, VCCA = 3.3 ± 0.3 V)
                                       : tpd = 4.6 ns (max) (VCCB = 2.5 ± 0.2 V, VCCA = 3.3 ± 0.3 V)
Output current: IOH/IOL = ±24 mA (min) (VCC = 3.0 V)
                           : IOH/IOL = ±18 mA (min) (VCC = 2.3 V)
                           : IOH/IOL = ±6 mA (min) (VCC = 1.65 V)
Latch-up performance: ±300 mA
ESD performance: Machine model > ±200 V
                             : Human body model > ±2000 V
Package: TSSOP (thin shrink small outline package)
3.6-V tolerant function and power-down protection provided on all inputs and outputs
Note 1: Do not apply a signal to any bus pins when it is in the output mode. Damage may result.
All floating (high impedance) bus pins must have their input level fixed by means of pull-up or pull-down
resistors.


Pinout

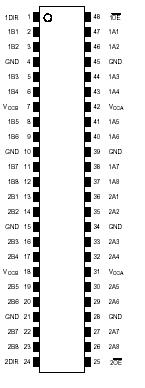

Connection Diagram


Specifications

Characteristics
Symbol
Rating
Unit
Power supply voltage (Note 2)
VCCB
-0.5 to 4.6
V
VCCA
-0.5 to 4.6
DC input voltage
(DIR,OE )
VIN
-0.5 to 4.6
V
DC bus I/O voltage
VI/OB
-0.5 to 4.6 (Note 3)
V
-0.5 to VCCB +0.5
(Note 4)
-0.5 to 4.6 (Note 3)
VI/OA
-0.5 to VCCA+ 0.5
(Note 4)
Input diode current
IIK
-50
mA
Output diode current
II/OK
±50 (Note 5)
mA
DC output current
IOUTB
±50
mA
IOUTA
±50
DC VCC/ground current per supply pin
ICCB
±100
mA
ICCA
±100
Power dissipation
PD
400
mW
Storage temperature
Tstg
-65 to 150

Note 2: Don't supply a voltage to VCCA pin when VCCB is in the OFF state.
Note 3: Output in OFF state
Note 4: High or low state. IOUT absolute maximum rating must be observed.
Note 5: VOUT < GND, VOUT >VCC
