TC74VCX162821FT

Features: Bidirectional interface between 1.8-V and 2.5 V, 1.8-V and 3.6-V or 2.5 V and 3.6-V buses High-speed operation: tpd = 7.0 ns (max) (VCCB = 1.8 ± 0.15 V, VCCA = 2.5 ± 0.2 V) : tpd = 7.1 ns (max) (VCCB = 1.8 ± 0.15 V, VCCA = 3.3 ± 0.3 V) : tpd = 4.6 ns (max) (VCCB = 2.5 ± 0.2 V, VCCA = 3.3...

product image

TC74VCX162821FT Picture
See larger image
SeekIC No. : 004514604 Detail

TC74VCX162821FT: Features: Bidirectional interface between 1.8-V and 2.5 V, 1.8-V and 3.6-V or 2.5 V and 3.6-V buses High-speed operation: tpd = 7.0 ns (max) (VCCB = 1.8 ± 0.15 V, VCCA = 2.5 ± 0.2 V) : tpd = 7.1 ns ...

TC74VCX162821FT Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TC74VCX162821FT
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Bidirectional interface between 1.8-V and 2.5 V, 1.8-V and 3.6-V or 2.5 V and 3.6-V buses
High-speed operation: tpd = 7.0 ns (max) (VCCB = 1.8 ± 0.15 V, VCCA = 2.5 ± 0.2 V)
                                      : tpd = 7.1 ns (max) (VCCB = 1.8 ± 0.15 V, VCCA = 3.3 ± 0.3 V)
                                       : tpd = 4.6 ns (max) (VCCB = 2.5 ± 0.2 V, VCCA = 3.3 ± 0.3 V)
Output current: IOH/IOL = ±24 mA (min) (VCC = 3.0 V)
                          : IOH/IOL = ±18 mA (min) (VCC = 2.3 V)
                          : IOH/IOL = ±6 mA (min) (VCC = 1.65 V)
Latch-up performance: ±300 mA
ESD performance: Machine model > ±200 V
                             : Human body model > ±2000 V
Package: TSSOP (thin shrink small outline package)
3.6-V tolerant function and power-down protection provided on all inputs and outputs
Note 1: Do not apply a signal to any bus pins when it is in the output mode. Damage may result.
All floating (high impedance) bus pins must have their input level fixed by means of pull-up or pull-down
resistors.


Pinout

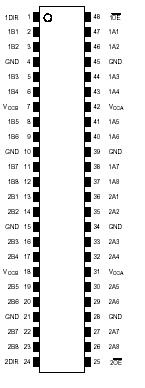

Connection Diagram


Specifications

Characteristics
Symbol
Rating
Unit
Power supply voltage
VCC
-0.5 to 4.6
V
DC input voltage
VIN
-0.5 to 4.6
V
DC output voltage
VOUT
-0.5 to 4.6 (Note 1)
V
-0.5 to VCCA+ 0.5
(Note 2)
Input diode current
IIK
-50
mA
Output diode current
II/OK
±50 (Note 3)
mA
DC output current
IOUT
±50
mA
Power dissipation
PD
400
mW
DC VCC/ground current per supply pin
ICC
±100
mA
Storage temperature
Tstg
-65 to 150
Note 1: OFF state
Note 2: High or low state. IOUT absolute maximum rating must be observed.
Note 3: VOUT < GND, VOUT >VCC
