TC74LCX74FN

Type: D-Type
Number of Bits per Element: 1
Trigger Type: Positive Edge
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Function: Set(Preset) and Reset
Output Type: Differential
Number of Elements: 2
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Frequency - Clock: 150MHz
Current - Output High, Low: 24mA, 24mA
Voltage - Supply: 2 V ~ 3.6 V
Delay Time - Propagation: 1.5ns
Packaging: Tube
Series: 74LCX
Manufacturer: Toshiba


Features:

 Low-voltage operation: V_CC = 2.0 to 3.6 V
 High-speed operation: t_pd = 7.0 ns (max) (V_CC = 3.0 to 3.6 V)
 Output current: |I_OH|/I_OL = 24 mA (min) (V_CC = 3.0 V)
 Latch-up performance: ±500 mA
 Available in JEDEC SOP, JEITA SOP and TSSOP
 Power-down protection provided on all inputs and outputs
 Pin and function compatible with the 74 series (74AC/VHC/HC/F/ALS/LS etc.) 74 type

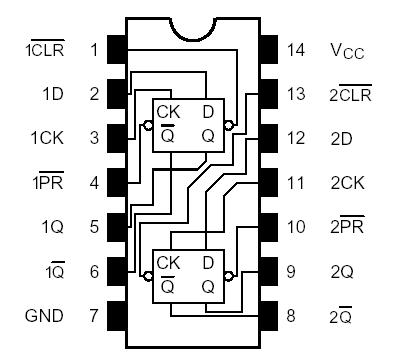

Pinout




Specifications

Characteristics	Symbol	Rating	Unit
Power supply voltage	VCC	-0.5 to 7.0	V
DC input voltage	VIN	-0.5 to 7.0	V
DC output voltage	VOUT	-0.5 to 7.0      (Note 1)	V
		-0.5 to VCC + 0.5                                            (Note 2)
Input diode current	IIK	-50	mA
Output diode current	IOK	±50          (Note 3)	mA
DC output current	IOUT	±50	mA
Power dissipation	PD	180	mW
DC VCC/ground current	ICC/IGND	±100	mA
Storage temperature	Tstg	-65 to 150

Parameters:

Technical/Catalog Information	TC74LCX74FN
Vendor	Toshiba
Category	Integrated Circuits (ICs)
Mounting Type	Surface Mount
Package / Case	14-SOL
Function	Set and Reset
Number of Bits per Element	1
Number of Elements	2 - Dual
Current - Output High, Low	24mA, 24mA
Output Type	Differential
Trigger Type	Positive Edge
Type	D-Type
Packaging	Tube
Operating Temperature	-40°C ~ 85°C
Delay Time - Propagation	1.5ns
Frequency - Clock	150MHz
Voltage - Supply	2 V ~ 3.6 V
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	TC74LCX74FN TC74LCX74FN
