TC74LCX646FS

Features: · Low-voltage operation: VCC = 2.0 to 3.6 V· High-speed operation: tpd = 7.0 ns (max) (VCC = 3.0 to 3.6 V)· Output current: |IOH|/IOL = 24 mA (min) (VCC = 3.0 V)· Latch-up performance: ±500 mA· Available in SSOP· Bidirectional interface between 5.0 V and 3.3 V signals· Power-down protect...

product image

TC74LCX646FS Picture
See larger image
SeekIC No. : 004514556 Detail

TC74LCX646FS: Features: · Low-voltage operation: VCC = 2.0 to 3.6 V· High-speed operation: tpd = 7.0 ns (max) (VCC = 3.0 to 3.6 V)· Output current: |IOH|/IOL = 24 mA (min) (VCC = 3.0 V)· Latch-up performance: ±50...

TC74LCX646FS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TC74LCX646FS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Low-voltage operation: VCC = 2.0 to 3.6 V
· High-speed operation: tpd = 7.0 ns (max) (VCC = 3.0 to 3.6 V)
· Output current: |IOH|/IOL = 24 mA (min) (VCC = 3.0 V)
· Latch-up performance: ±500 mA
· Available in SSOP
· Bidirectional interface between 5.0 V and 3.3 V signals
· Power-down protection provided on all inputs Pin and function compatible with the 74 series (74AC/HC/F/ALS/LS etc.) 646 type


Pinout

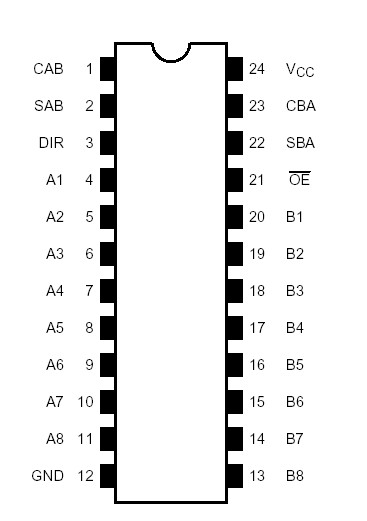

Connection Diagram


Specifications

Characteristics Symbol Rating Unit
Power supply voltage VCC -0.5 to 7.0 V
DC input voltage
(DIR, OE , CAB, CBA, SAB, SBA)		 VIN -0.5 to 7.0 V
DC bus I/O voltage VI/O -0.5 to 7.0 (Note 2) V
-0.5 to VCC +0.5
(Note 3)
Input diode current
 IIK
 -50 mA
Output diode current IOK ±50 (Note 4) mA
DC output current IOUT ±50 mA
Power dissipation PD 180 mW
DC VCC/ground current ICC/IGND ±100 mA
Storage temperature Tstg 65 to 150 °C

Note 2: Output in OFF state
Note 3: High or low state. IOUT absolute maximum rating must be observed.
Note 4: VOUT < GND, VOUT > VCC


Description

The TC74LCX646FS is a high performance CMOS octal bus transceiver/register. Designed for use in 3.3-V systems, it achieves high-speed operation while maintaining the CMOS low power dissipation.

The device is designed for low-voltage (3.3 V) VCC applications, but it could be used to interface to 5-V supply environment for both inputs and outputs.

This device is bus transceiver with 3-state outputs, D-type flip-flops, and control circuitry arranged for multiplexed transmission of data directly from the internal registers.

All inputs of the TC74LCX646FS are equipped with protection circuits against static discharge.
