TC74LCX273FW

Features: Low-voltage operation: VCC = 2.0 to 3.6 V High-speed operation: tpd = 8.5 ns (max) (VCC = 3.0 to 3.6 V) Output current: |IOH|/IOL = 24 mA (min) (VCC = 3.0 V) Latch-up performance: ±500 mA Available in JEDEC SOP, JEITA SOP and TSSOP Power-down protection is provided on all inputs and out...

product image

TC74LCX273FW Picture
See larger image
SeekIC No. : 004514554 Detail

TC74LCX273FW: Features: Low-voltage operation: VCC = 2.0 to 3.6 V High-speed operation: tpd = 8.5 ns (max) (VCC = 3.0 to 3.6 V) Output current: |IOH|/IOL = 24 mA (min) (VCC = 3.0 V) Latch-up performance: ±500 mA...

TC74LCX273FW Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TC74LCX273FW
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Low-voltage operation: VCC = 2.0 to 3.6 V
High-speed operation: tpd = 8.5 ns (max) (VCC = 3.0 to 3.6 V)
Output current: |IOH|/IOL = 24 mA (min) (VCC = 3.0 V)
Latch-up performance: ±500 mA
Available in JEDEC SOP, JEITA SOP and TSSOP
Power-down protection is provided on all inputs and outputs
Pin and function compatible with the 74 series (74AC/VHC/HC/F/ALS/LS etc.) 273 type




Pinout

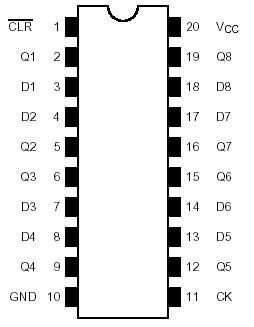

Connection Diagram


Specifications

Characteristics
Symbol
Rating
Unit
Power supply voltage
VCC
-0.5 to 7.0
V
DC input voltage
VIN
-0.5 to 7.0
V
DC output voltage
VOUT
-0.5 to 7.0 (Note 1)
V
-0.5 to VCC + 0.5
                                           (Note 2)
Input diode current
IIK
-50
mA
Output diode current
IOK
                         ±50           (Note 3)
mA
DC output current
IOUT
±50
mA
Power dissipation
PD
180
mW
DC VCC/ground current
ICC/IGND
±100
mA
Storage temperature
Tstg
-65 to 150
