TC74LCX16244FT

Features: · Low-voltage operation: VCC = 2.0 to 3.6 V· High-speed operation: tpd = 4.5 ns (max) (VCC = 3.0 to 3.6 V)· Output current: |IOH|/IOL = 24 mA (min) (VCC = 3.0 V)· Latch-up performance: ±500 mA· Package: TSSOP (thin shrink small outline package)· Power-down protection provided on all inpu...

product image

TC74LCX16244FT Picture
See larger image
SeekIC No. : 004514545 Detail

TC74LCX16244FT: Features: · Low-voltage operation: VCC = 2.0 to 3.6 V· High-speed operation: tpd = 4.5 ns (max) (VCC = 3.0 to 3.6 V)· Output current: |IOH|/IOL = 24 mA (min) (VCC = 3.0 V)· Latch-up performance: ±50...

TC74LCX16244FT Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TC74LCX16244FT
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Low-voltage operation: VCC = 2.0 to 3.6 V
· High-speed operation: tpd = 4.5 ns (max) (VCC = 3.0 to 3.6 V)
· Output current: |IOH|/IOL = 24 mA (min) (VCC = 3.0 V)
· Latch-up performance: ±500 mA
· Package: TSSOP (thin shrink small outline package)
· Power-down protection provided on all inputs and outputs

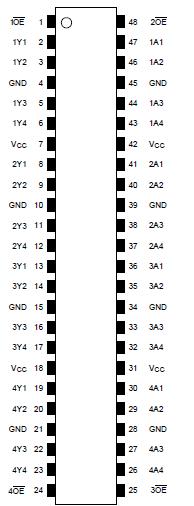

Pinout

Connection Diagram


Specifications

Characteristics
Symbol
Rating
Unit
Power supply voltage
VCC
-0.5 to 6.0
V
Input voltage
VIN
-0.5 to 7.0
V
Output voltage
VOUT
-0.5 to 7.0 (Note 1)
V
-0.5 to VCC + 0.5 (Note 2)
V
Input diode current
IIK
-50
mA
Output diode current
IOK
±50 (Note 3)
mA
DC output current
IOUT
±50
mA
Power dissipation
PD
400
mW
DC VCC/ground current per supply pin
ICC/IGND
±100
mA
Storage temperature
Tstg
-65 to 150
°C
Note 1: Output in OFF state
Note 2: High or low state. IOUT absolute maximum rating must be observed.
Note 3: VOUT < GND, VOUT > VCC


Description

The TC74LCX16244FT is a high-performance CMOS 16-bit bus buffer. Designed for use in 2.5-V or 3.3-V systems, it achieves high-speed operation while maintaining the CMOS low power dissipation.

The TC74LCX16244FT is designed for low-voltage (2.5-V or 3.3-V) VCC applications, but it could be used to interface to 5 V supply environment for both inputs and outputs.

This TC74LCX16244FT is non-inverting 3-state buffer having four active-low output enables. It can be used as four 4-bit buffers two 8-bit buffers or one 16-bit buffer. When the OE input is high, the outputs are in a high-impedance state. This device is designed to be used with 3-state memory address drivers, etc.All inputs are equipped with protection circuits against static discharge.
