TC7106

Features: • Internal Reference with Low Temperature Drift- TC7106/7: 80ppm/°C Typical- TC7106A/7A: 20ppm/°C Typical• Drives LCD (TC7106) or LED (TC7107) Display Directly• Zero Reading with Zero Input• Low Noise for Stable Display• Auto-Zero Cycle Eliminates Need for Z...

product image

TC7106 Picture
See larger image
SeekIC No. : 004514290 Detail

TC7106: Features: • Internal Reference with Low Temperature Drift- TC7106/7: 80ppm/°C Typical- TC7106A/7A: 20ppm/°C Typical• Drives LCD (TC7106) or LED (TC7107) Display Directly• Zero Read...

TC7106 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TC7106
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Internal Reference with Low Temperature Drift
- TC7106/7: 80ppm/°C Typical
- TC7106A/7A: 20ppm/°C Typical
• Drives LCD (TC7106) or LED (TC7107) Display Directly
• Zero Reading with Zero Input
• Low Noise for Stable Display
• Auto-Zero Cycle Eliminates Need for Zero Adjustment
• True Polarity Indication for Precision Null Applications
• Convenient 9V Battery Operation (TC7106A)
• High Impedance CMOS Differential Inputs: 1012Ω
• Differential Reference Inputs Simplify Ratiometric Measurements
• Low Power Operation: 10mW




Application

• Thermometry
• Bridge Readouts: Strain Gauges, Load Cells, Null Detectors
• Digital Meters: Voltage/Current/Ohms/Power, pH
• Digital Scales, Process Monitors
• Portable Instrumentation




Pinout

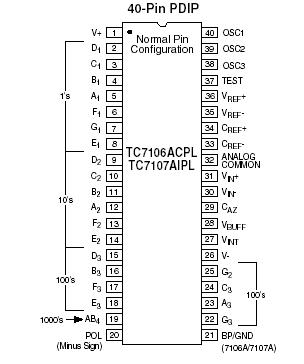

Connection Diagram




Specifications

Parameter Name Value
Supply Voltage (V) 9
Power (mW) 10
Hold Function No
For DMM, DPM, data loggers Yes
Resolution (Digits) 3.5
Resolution (Counts) 2000
Display Type LCD
Temp. Range (°C) -25 to 85





Description

The TC7106A and TC7107A 3-1/2 digit direct display drive analog-to-digital converters allow existing 7106/7107 based systems to be upgraded. Each device has a precision reference with a 20ppm/°C max temperature coefficient. This represents a 4 to 7 times improvement over similar 3-1/2 digit converters. Existing 7106 and 7107 based systems may be upgraded withoutchanging external passive component values. The TC7107A drives common anode light emitting diode (LED) displays directly with 8mA per segment. A low cost, high resolution indicating meter requires only a display, four resistors, and four capacitors.The TC7106A low power drain and 9V battery operation make it suitable for portable applications.
