Aluminum Electrolytic Capacitors - Leaded 50uF 250V

product image

TC59 Picture
SeekIC No. : 00715239 Detail

TC59: Aluminum Electrolytic Capacitors - Leaded 50uF 250V

floor Price/Ceiling Price

US $ 18.7~26.41 / Piece | Get Latest Price
Part Number:
TC59
Mfg:
Cornell Dubilier
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~50
  • 50~100
  • Unit Price
  • $26.41
  • $22.45
  • $19.96
  • $18.7
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/4

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Capacitance : 50 uF Tolerance : 20 %
Voltage Rating : 250 Volts Operating Temperature Range : - 40 C to + 85 C
Termination Style : Axial Dimensions : 19.05 mm Dia. x 41.28 mm L
Product : General Purpose Electrolytic Capacitors Packaging : Bulk

Description

Lead Style :
Tolerance : 20 %
Packaging : Bulk
Product : General Purpose Electrolytic Capacitors
Voltage Rating : 250 Volts
Operating Temperature Range : - 40 C to + 85 C
Termination Style : Axial
Capacitance : 50 uF
Dimensions : 19.05 mm Dia. x 41.28 mm L


Features:

Low Dropout Voltage
- Typically 120mV@ 50mA; 380mV @100mA
for -5.0V Output Part
Tight Output Voltage Tolerance: ±2% Max
Low Supply Current: 3.5µA, Typ
Small Package: 3-Pin SOT-23A





Application

Cellular Phones
Battery Operated Systems
Palmtops
Portable Cameras





Pinout

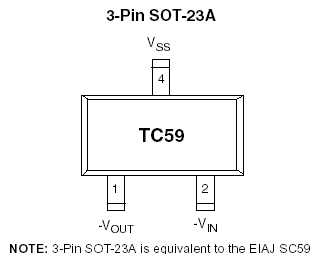

  Connection Diagram




Specifications

Parameter Name Value
Max Input Voltage -10
Output Voltage (v) -3.0, -5.0
Typical Active Current (A) 3
Typical Dropout Voltage @ Max. lout (mV) 380
Typical Output Voltage Accuracy (%) 0.5
Output Capacitor Type Aluminum/Tantalum


Input Voltage .........................................................-12V
Output Current ..................................................200mA
Output Voltage..................... -VDD 0.3V to VIN + 0.3V
Power Dissipation.............................................150mW
Operating Temperature Range.............-40°C to +85°C
Storage Temperature Range .............. -40°C to +125°C





Description

The TC59 is a low dropout, negative output voltage regulator designed specifically for battery-operated systems. Its full CMOS construction eliminates the wasted ground current typical of bipolar LDOs. This reduced supply current significantly extends battery life, particularly when the TC59 is operated in dropout. Other TC59 key features include low supply current (typically 3.0 A) and low dropout operation (typically 120 mV at 50 mA). The TC59 is packaged in a tiny 3-pin SOT-23A package.




Parameters:

Technical/Catalog InformationTC59
VendorCornell Dubilier Electronics (CDE)
CategoryCapacitors
Capacitance50F
ESR (Equivalent Series Resistance)2.150 Ohm
FeaturesGeneral Purpose
Lifetime @ Temp.1000 Hrs @ 85°C
Maximum Temperature-40°C ~ 85°C
Size / Dimension0.750" Dia x 1.625" H (19.05mm x 41.28mm)
Lead Spacing-
Surface Mount Land Size-
Mounting TypeThrough Hole
Package / CaseAxial
PackagingBulk
Tolerance±20%
Voltage Rating250V
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names TC59
