TC55VZM216AFTN12

Features: • Fast access time (the following are maximum values) TC55VZM216AJJN/AFTN08:8 ns TC55VZM216AJJN/AFTN10:10 ns TC55VZM216AJJN/AFTN12:12 ns• Low-power dissipation (IDDO2)• Single power supply voltage of 3.3 V ± 0.3 V• Fully static operation• All inputs and outp...

product image

TC55VZM216AFTN12 Picture
See larger image
SeekIC No. : 004514161 Detail

TC55VZM216AFTN12: Features: • Fast access time (the following are maximum values) TC55VZM216AJJN/AFTN08:8 ns TC55VZM216AJJN/AFTN10:10 ns TC55VZM216AJJN/AFTN12:12 ns• Low-power dissipation (IDDO2)• S...

TC55VZM216AFTN12 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TC55VZM216AFTN12
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Fast access time (the following are maximum values)
  TC55VZM216AJJN/AFTN08:8 ns
  TC55VZM216AJJN/AFTN10:10 ns
  TC55VZM216AJJN/AFTN12:12 ns
• Low-power dissipation (IDDO2)
• Single power supply voltage of 3.3 V ± 0.3 V
• Fully static operation
• All inputs and outputs are LVTTL compatible
• Output buffer control using OE
• Data byte control using LB (I/O1 to I/O8) and UB (I/O9 to I/O16)
• Package:
  SOJ44-P-400-1.27 (AJJN) (Weight: 1.64 g typ)
  TSOP II44-P-400-0.80 (AFTN) (Weight: 0.45 g typ)

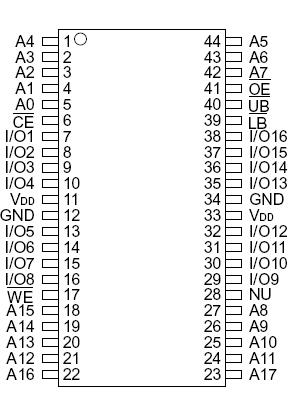

Pinout

Connection Diagram




Specifications

SYMBOL RATING VALUE UNIT
VDD Power Supply Voltage −0.5 to 4.6 V
VIN Input Terminal Voltage −0.5* to 4.6 V
VI/O Input/Output Terminal Voltage −0.5* to VDD + 0.5** V
PD Power Dissipation 1.4 W
Tsolder Soldering Temperature (10s) 260 °C
Tstg Storage Temperature −65 to 150 °C
Topr Operating Temperature −10 to 85 °C

*: −1.5 V with a pulse width of 20% of tRC min (4 ns max)
**: VDD + 1.5 V with a pulse width of 20% of tRC min (4 ns max)




Description

The TC55VZM216AFTN12 is a 4,194,304-bit high-speed static random access memory (SRAM) organized as 262,144 words by 16 bits. Fabricated using CMOS technology and advanced circuit techniques to provide high speed, it operates from a single 3.3 V power supply. Chip enable (CE ) can be used to place the device in a low-power mode, and output enable (OE ) provides fast memory access. Data byte control signals ( LB , UB) provide lower and upper byte access. This TC55VZM216AFTN12 is well suited to cache memory applications where high-speed access and high-speed storage are required. All inputs and outputs are directly LVTTL compatible. The TC55VZM216AFTN12 is available in plastic 44-pin SOJ and TSOP with 400mil width for high density surface assembly
