Product Details

Description



Features:

• Fast access time (the following are maximum values)
    TC55V8512JI/FTI-12:12 ns
    TC55V8512JI/FTI-15:15 ns
• Low-power dissipation (the following are maximum values)
• Single power supply voltage of 3.3 V ± 0.3 V
• Fully static operation
• All inputs and outputs are LVTTL compatible
• Output buffer control using OE
• Package:
    SOJ36-P-400-1.27 (JI)     (Weight: 1.35 g typ)
    TSOP II44-P-400-0.80     (FTI) (Weight: 0.45 g typ)

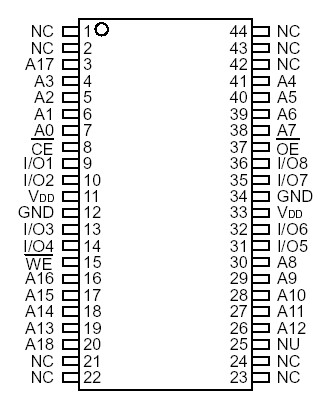

Pinout

Connection Diagram


Specifications

SYMBOL
RATING
VALUE
UNIT
VDD
 Power Supply Voltage
−0.5 to 4.6
V
VIN
 Input Terminal Voltage
−0.5* to 4.6
V
VI/O
 Input/Output Terminal Voltage
−0.5* to VDD + 0.5**
V
PD
 Power Dissipation
1.4
W
Tsolder
 Soldering Temperature (10s)
260
°C
Tstg
 Storage Temperature
−65 to 150
°C
Topr
Operating Temperature
−40 to 100
°C



Description

The TC55V8512FTI-15 is a 4,194,304-bit high-speed static random access memory (SRAM) organized as 524,288 words by 8 bits. Fabricated using CMOS technology and advanced circuit techniques to provide high speed, it operates from a single 3.3 V power supply. Chip enable (CE) can be used to place the device in a low-power mode, and output enable (OE ) provides fast memory access. This device is well suited to cache memory applications where high-speed access and high-speed storage are required. All inputs and outputs are directly LVTTL compatible. The TC55V8512FTI-15 is available in plastic 36-pin SOJ and 44-pin TSOP with 400mil width for high density surface assembly. The TC55V8512FTI-15 guarantees −40° to 85°C operating temperature so it is suitable for use in wide operating temperature system.
