TC5565APL-15

The TC5565APL-15 is 65,536 bit static random access memory organized as 8,192 words by 8 bits using CMOS technology, and operates from a single 5V supply. Advanced circuit techniques provide both high speed and low power features with a maximum operating current of 5mA/MHz and maximum access time of 100ns/120ns/150ns.

When CE2 is a logical low or \CEl is a logical high, the device is placed in low power standby mode in which standby current is 2uA typically. The TC5565APL/AFL has three control inputs. Two chip enable (\CE1, CE2) allow for device selection and data retention control, and an output enable input (\OE) provides fast memory access. Thus the TC5565APL-15 is suitable for use in various microprocessor application systems where high speed, low power, and battery back up are required.

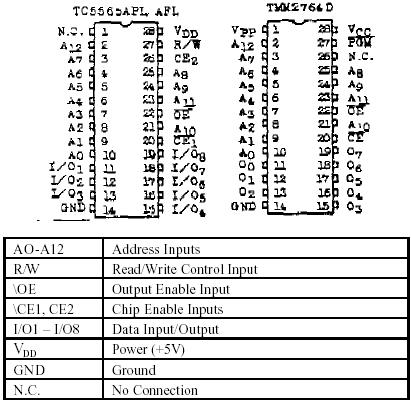

The TC5565APL-15 also features pin compatibility with the 64K bit EPROM (TMM2764D).

RAM and EPROM are then interchangeable in the same socket, resulting in flexibility in the definition of the quantity of RAM versus EPROM in microprocessor application systems. The TC5565APL-15 is offered in a dual-in-line 28 pin standard plastic package. The TC5565AFL is offered in 28 pin mini Flat Package.
