Features:

• P-1 dB: 30 dBm
• Small Signal Gain: 21 dB
• Power Added Efficiency: 25 %
• IP3: 39 dBm
• Matched to 50 Ω operation
• Bias condition: 600 mA @ 7 V

Application

• Wireless Internet Access
• Wireless Local Loop
• Two way radio

Pinout

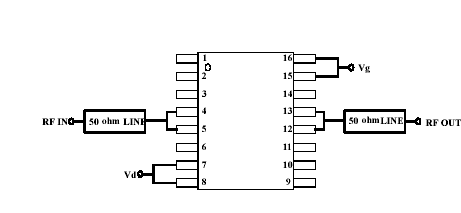

Connection Diagram

Description

The TC3538 is a 2 stage PHEMT MMIC power amplifier. It is designed for use in low cost, high volume, 5 - 6 GHz band applications. The MMIC is matched to 50Ω operation. It provides a typical gain of 21 dB and P1dB power of more than 30 dBm. Typical bias condition is 7V at 600 mA. The MMIC is packaged in a low-cost surface-mountable plastic package.
