TC3532

Features:

• P-1 dB: 29 dBm
• Small Signal Gain: 21 dB
• Power Added Efficiency: 25 %
• IP3: 39 dBm
• Match to 50 Ω operation
• Bias condition: 400 mA @ 8 V


Application

• Wireless Internet Access

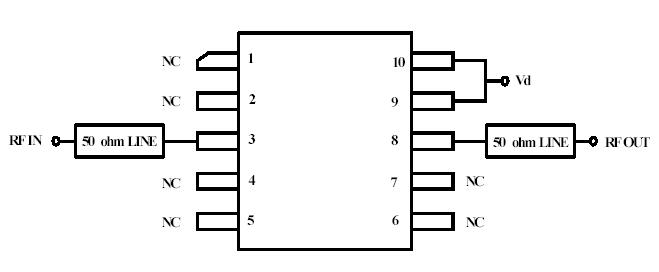

Pinout




Specifications

SYMBOL	DESCRIPTION	MIN	TYP	MAX	Units
FREQ	Frequency Range	4.9		6	GHz
SSG	Small Signal Gain	19	21		dB
GOF	Small Signal Gain Flatness		±0.5	±0.75	dB
P-1 dB	Output Power at 1 dB Gain Compression	28	29		dBm
P-3 dB	Output Power at 3 dB Gain Compression	29	30		dBm
IP3	Third Order Intercept Point	37	39		dBm
VSWR, IN	Input VSWR		2:1
VDD	Supply Voltage		8		Volt
IDD	Current Supply Without RF		400		mA
IDP-1	Current Supply @ Pout=P-1 dB		400	450	mA
a	Power Added Efficiency		25		%

Description

The TC3532 is a 2 stage PHEMT MMIC power amplifier.TC3532 is designed for use in low cost, high volume,    4.9~6 GHz  band applications. The MMIC TC3532 is matched to 50Ω operation. No external matching component is  required. It provides a typical gain of 21 dB and P1dB power of more than 29 dBm. Typical bias condition is  8V at 400 mA.

The MMIC TC3532 is packaged in a Ceramic 10 Pins package. The copper based carrier of the package  allows direct soldering of the device to the PCB.
