TC225

Supply voltage range V_CC for ADB (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 V to 15 V
Input voltage range V_I for ABG, IAG, SRG, TRG . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 V to 15 V
Operating free-air temperature range, T_A  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10°C to 60°C
Storage temperature range  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30°C to 85°C

The TC221, TC225 and TC227 are full-frame charge-coupled device (CCD) image sensors designed specifically for medical and industrial applications where ruggedness and small size are required. The image-area diagonal measures 1.3 mm for the TC227, 2.4 mm for the TC221, and 3.63 mm for the TC225. The image sensors contain, in addition to dark reference pixels, 190, 285, and 102 active lines with 190, 285, and 102 active pixels per line, respectively. The antiblooming feature is activated by supplying clock pulses to the antiblooming gate, an integral part of each image-sensing element. The charge is converted to signal voltage at 9.5 V per electron by a high-performance structure with built-in automatic reset and a voltage-reference
generator. The signal is further buffered by a low-noise two-stage source-follower amplifier to provide high output-drive capability.

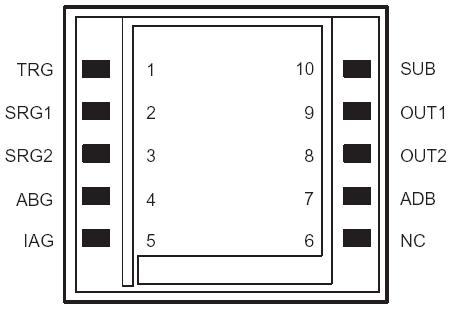

The TC221 and TC227 are supplied in 6-pin molded plastic packages; the TC225 is supplied in a 10-pin molded plastic package. The glass window can be cleaned using any standard method for cleaning optical assemblies or by wiping the surface with a cotton swab soaked in alcohol.
