TC1263

Features:

• Very Low Dropout Voltage
• 500 mA Output Current
• High-Output Voltage Accuracy
• Standard or Custom Output Voltages
• Overcurrent and Overtemperature Protection
• SHDN Input for Active Power Management
• ERROR Output Can Be Used as a Low Battery
Detector (SOIC only)




Application

• Battery-Operated Systems
• Portable Computers
• Medical Instruments
• Instrumentation
• Cellular/GSM/PHS Phones
• Linear Post-Regulators for SMPS
• Pagers

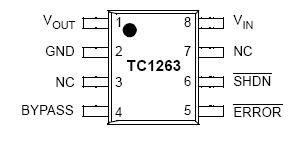

Pinout






Specifications

Parameter NameValueMax Input Voltage6Output Voltage (v)2.5, 2.8, 3.0, 3.3, 5.0Typical Active Current (A)80Typical Dropout Voltage @ Max. lout (mV)350Typical Output Voltage Accuracy (%)0.5Output Capacitor TypeAluminum/Tantalum

Parameter Name	Value
Max Input Voltage	6
Output Voltage (v)	2.5, 2.8, 3.0, 3.3, 5.0
Typical Active Current (A)	80
Typical Dropout Voltage @ Max. lout (mV)	350
Typical Output Voltage Accuracy (%)	0.5
Output Capacitor Type	Aluminum/Tantalum

Input Voltage .........................................................6.5V
Output Voltage................ (GND 0.3V) to (VIN + 0.3V)
Power Dissipation................Internally Limited (Note 7)
Voltage (max.) on Any Pin: (GND 0.3V) to (VIN + 0.3V)
Operating Temperature Range.... -40°C < TJ < +125°C
Storage Temperature..........................-65°C to +150°C
† Notice: Stresses above those listed under "Maximum
Ratings" may cause permanent damage to the device. This is
a stress rating only and functional operation of the device at
those or any other conditions above those indicated in the
operation listings of this specification is not implied. Exposure
to maximum rating conditions for extended periods may affect
device reliability.




Description

The TC1263 is a fixed output, high accuracy (typically ±0.5%) CMOS low dropout regulator. Designed specifically for battery-operated systems, the TC1263's CMOS construction eliminates wasted ground current, significantly extending battery life. Total supply current is typically 80 A at full load (20 to 60 times lower than in bipolar regulators). TC1263 key features include ultra low noise, very low dropout voltage (typically 350 mV at full load), and fast response to step changes in load. The TC1263 incorporates both over-temperature and over-current protection. The TC1263 is stable with an output capacitor of only 1F and has a maximum output current of 500 mA. It is available in 8-Pin SOIC, 5-Pin TO-220 and 5-Pin DDPAK packages.

The TC1263 is a fixed-output, high-accuracy (typically ±0.5%) CMOS low dropout regulator. Designed specifically for battery-operated systems, the TC1263's CMOS construction eliminates wasted ground current, significantly extending battery life. Total supply current is typically 80 A at full load (20 to 60 times lower than in bipolar regulators).

TC1263 key features include ultra low noise operation, very low dropout voltage (typically 350 mV at full load) and fast response to step changes in load.

The TC1263 incorporates both overtemperature and overcurrent protection. The TC1263 is stable with an output capacitor of only 1 F and has a maximum output current of 500 mA. It is available in 8-Pin SOIC, 5-Pin TO-220 and 5-Pin DDPAK packages.
