TC1026

Supply Voltage .....................................................6.0V
Package Power Dissipation:
       8-Pin PDIP ...............................................730 mW
       8-Pin SOIC...............................................470 mW
       8-Pin MSOP .............................................320 mW
Voltage on Any Pin ...... (V_SS 0.3V) to (V_DD + 0.3V)
Junction Temperature......................................+150
Operating Temperature Range.............-40 to +85
Storage Temperature Range .............-55 to +150

*Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These
are stress ratings only and functional operation of the device at these or any other conditions above those indicated in the operation sections of the specifications is not implied. Exposure to Absolute Maximum Rating conditions for
extended periods may affect device reliability.

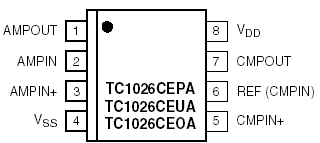

The TC1026 is a mixed-function device combining a general-purpose op amp, comparator and voltage reference in a single 8-pin package. This increased integration allows the user to replace two or three packages, which saves space, lowers supply current and increases system performance.

Both the op amp and comparator have rail-to-rail inputs and outputs which allows operation from low supply voltages with large input and output swings. The TC1026 is optimized for low voltage (V_DD = 1.8V), low supply current (12µA typ) operation.

Packaged in a space-saving 8-Pin MSOP, the TC1026 consumes half the board area of an 8-Pin SOIC and is ideal for applications requiring high integration, small size and low power. It is also available in 8-Pin SOIC and 8-Pin PDIP packages.
